Dell Latitude E6530 - Removing the Optical Drive

3. Tighten the screws to secure the hard-drive caddy to the hard drive.
4. Slide the hard drive into the computer.
5. Tighten the screws to secure the hard drive to the computer.
6. Install the battery.
7. Follow the procedures in
After Working Inside Your Computer .

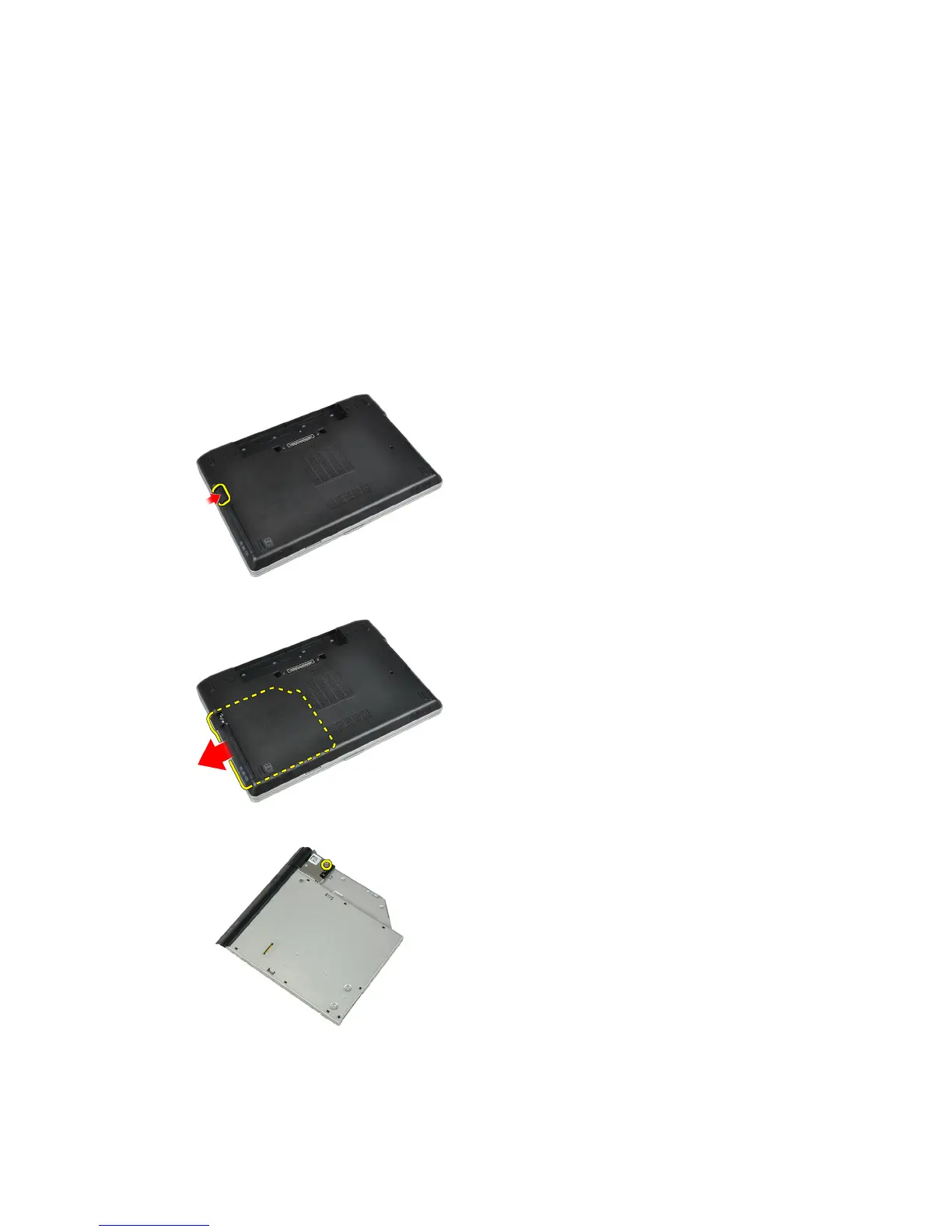

Removing the Optical Drive
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the battery.
3. Press the optical-drive latch to release the optical drive from the computer.
4. Pull the optical drive from the computer.
5. Remove the screw that secures the optical-drive latch to the optical drive assembly.
6. Push the optical-drive latch forward and remove it from the optical-drive assembly.
19
