Dell Latitude E6530 User Manual

Installing the Bluetooth Card

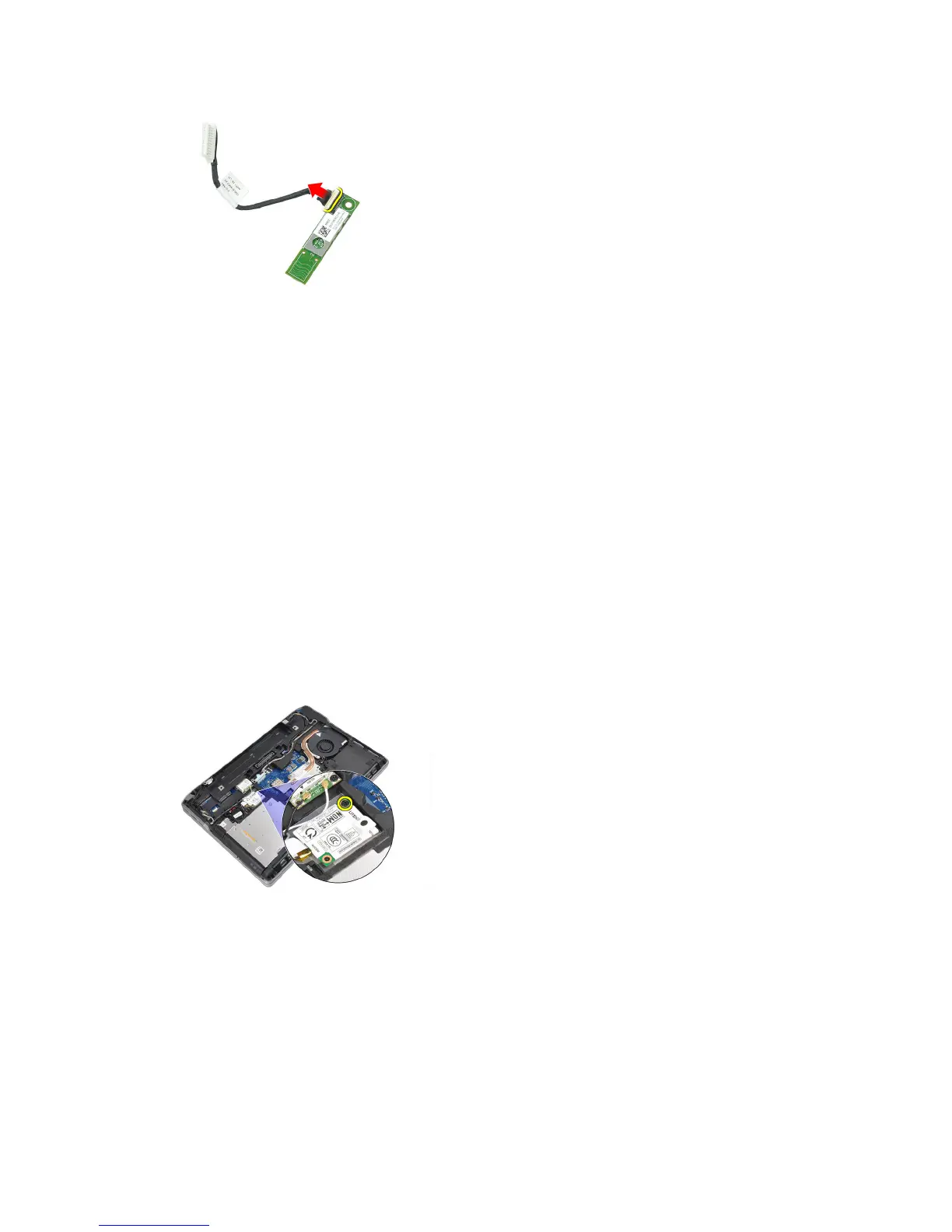

1. Connect the bluetooth cable to the bluetooth card.
2. Connect the other end of the bluetooth cable to the system board.
3. Place the bluetooth card in its location in the computer.
4. Tighten the screw to secure the bluetooth card to the system board.
5. Install:
a) base cover
b) battery
6. Follow the procedures in
After Working Inside Your Computer .
Removing the Modem Card
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the:
a) battery
b) base cover
3. Remove the screw that secures the modem card to the computer.
4. Lift the modem card to release the tab from the connector on the back of the card.
26

Dell Latitude E6530 Specifications

General

Bus type	DMI
Stepping	J1
Tjunction	85 °C
Processor cache	3 MB
Processor cores	2
System bus rate	5 GT/s
Processor family	Intel® Core™ i3
Processor series	Intel Core i3-2300 Mobile Series
Processor socket	Socket 988
Processor threads	4
Processor codename	Sandy Bridge
Processor frequency	2.3 GHz
Processor cache type	Smart Cache
Processor lithography	32 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	2.0
Processor operating modes	64-bit
ECC supported by processor	No
PCI Express configurations	1x16, 2x8, 1x8+2x4
Thermal Design Power (TDP)	35 W
CPU multiplier (bus/core ratio)	23
Maximum number of PCI Express lanes	16
Motherboard chipset	Intel® QM77 Express
Memory slots	2x SO-DIMM
Internal memory	4 GB
Memory clock speed	1600 MHz
Internal memory type	DDR3-SDRAM
Maximum internal memory	8 GB
HDD speed	7200 RPM
Storage media	HDD
Optical drive type	-
Card reader integrated	Yes
Total storage capacity	500 GB
Number of HDDs installed	1
Display diagonal	15.6 \
Display resolution	- pixels
On-board graphics card ID	0x116
On-board graphics card model	Intel® HD Graphics 3000
On-board graphics card family	Intel® HD Graphics
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
Wi-Fi standards	Wi-Fi 4 (802.11n)
Cabling technology	10/100/1000Base-T(X)
Networking features	Gigabit Ethernet
Charging port type	DC-in jack
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
Pointing device	Touchpad
Operating system installed	Windows 7 Professional
Product color	Black
Battery life (max)	- h
Processor code	SR0DN
Processor ARK ID	53438
Processor package size	37.5 x 37.5 (rPGA988B); 31 x 24 (BGA1023) mm
Supported instruction sets	AVX
Intel Identity Protection Technology version	1.00
Sustainability certificates	EPEAT Silver, ENERGY STAR

Weight and Dimensions

Depth	258 mm
Width	384 mm
Weight	2449 g
Height (rear)	34.2 mm
Height (front)	28 mm
