Dell Latitude E6530 - Removing the Hard-Drive Support Plate

c) media board (available in E6430/E6430 ATG only)
d) palmrest
e) display assembly
f) keyboard
g) keyboard trim
h) bluetooth card
i) hard drive
j) optical drive
k) base cover
l) battery
4. Follow the procedures in After Working Inside Your Computer .
Removing the Hard-Drive Support Plate
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the:
a) battery
b) base cover
c) hard drive
d) optical drive
e) keyboard trim
f) keyboard
g) display assembly
h) palmrest

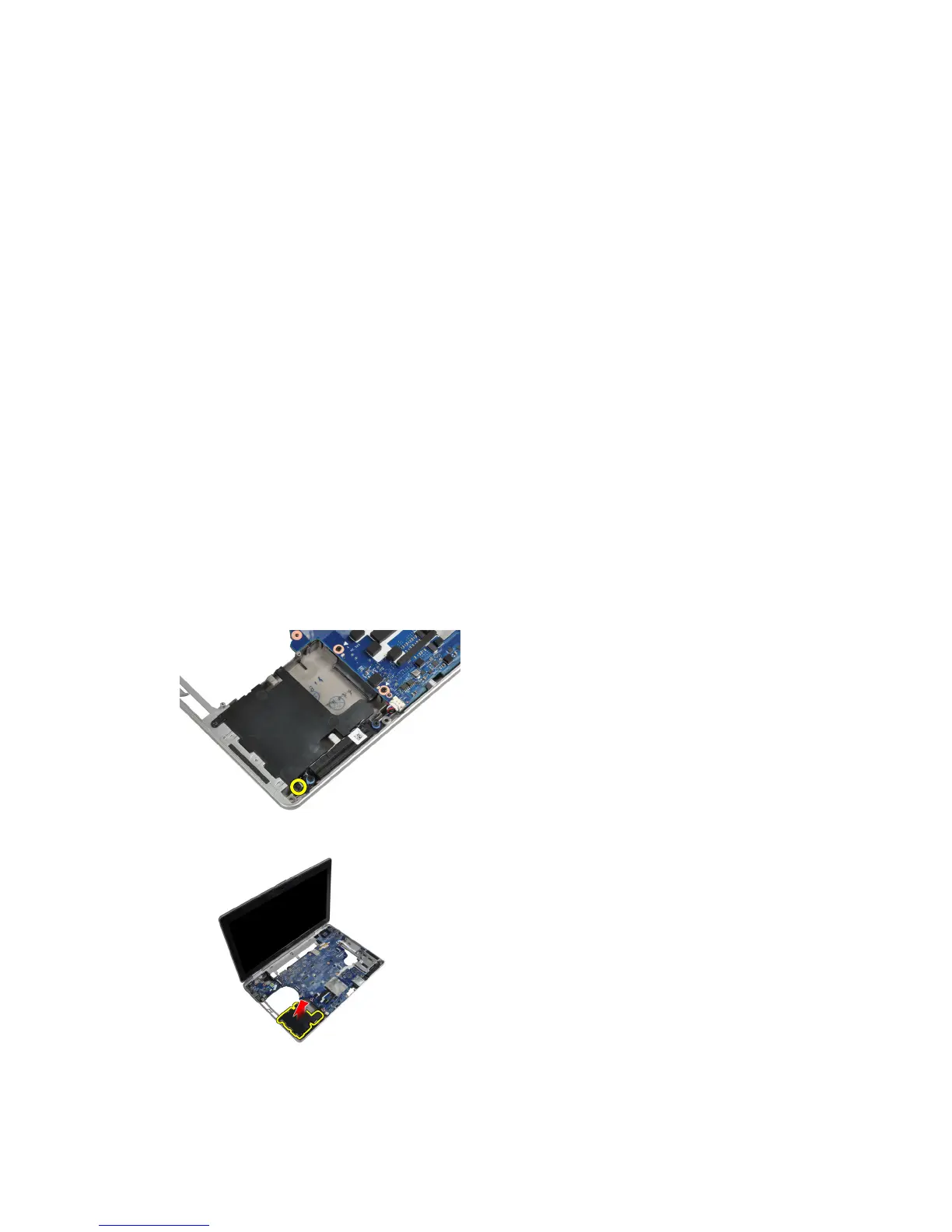

3. Remove the screw that secures the hard-drive support plate to the computer.
4. Lift the hard-drive support plate from the computer.
