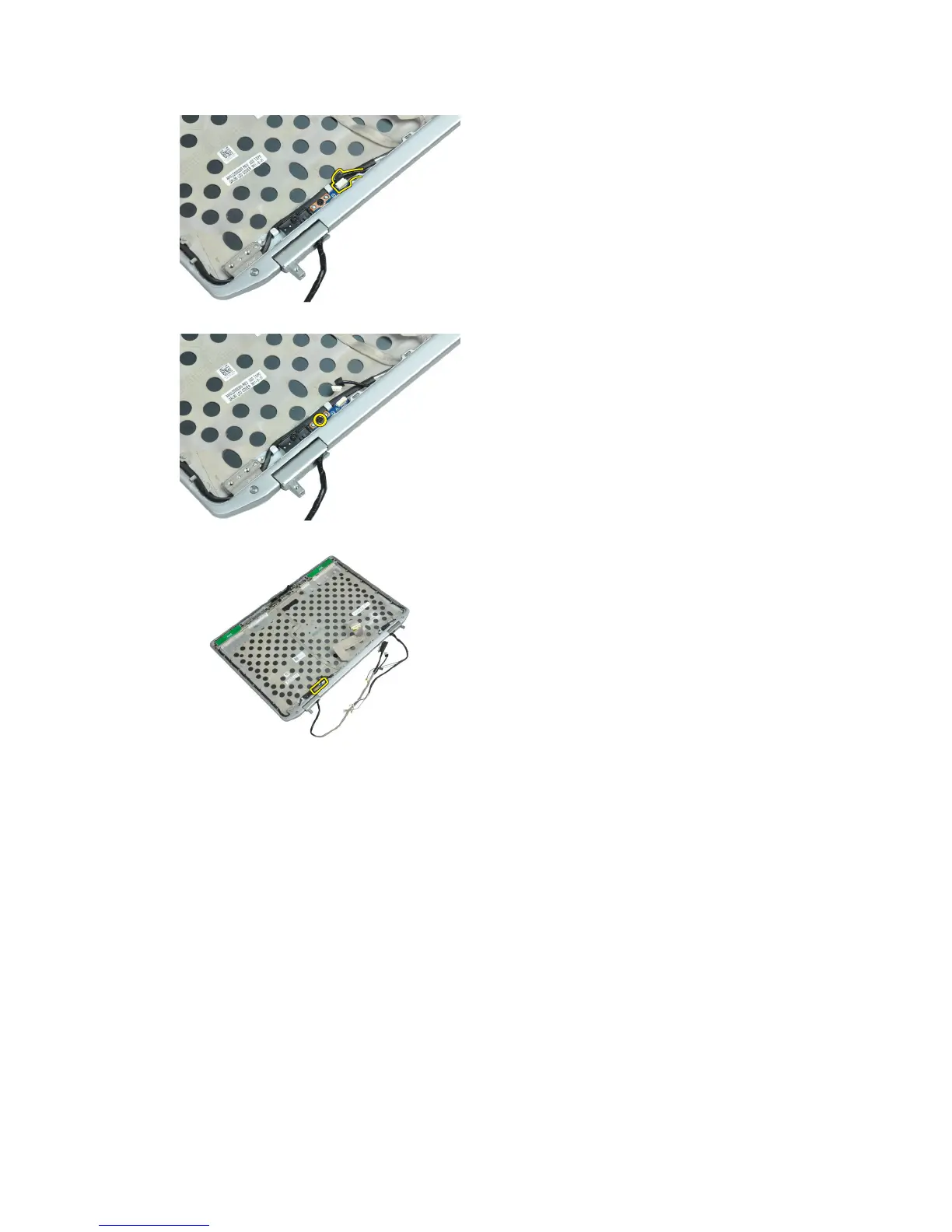

4. Remove the screw securing the power LED board to the display assembly.
5. Remove the power LED board from the display assembly.
Installing the Power LED Board
1. Place the power LED board in its compartment in the display assembly.
2. Tighten the screw to secure the LED board to the display assembly.
3. Connect the power LED board cable to the display assembly.
4. Install:
a) display panel
b) display bezel
c) display assembly
d) keyboard
e) keyboard trim
f) bluetooth module
g) hard drive
h) base cover
i) battery
33
