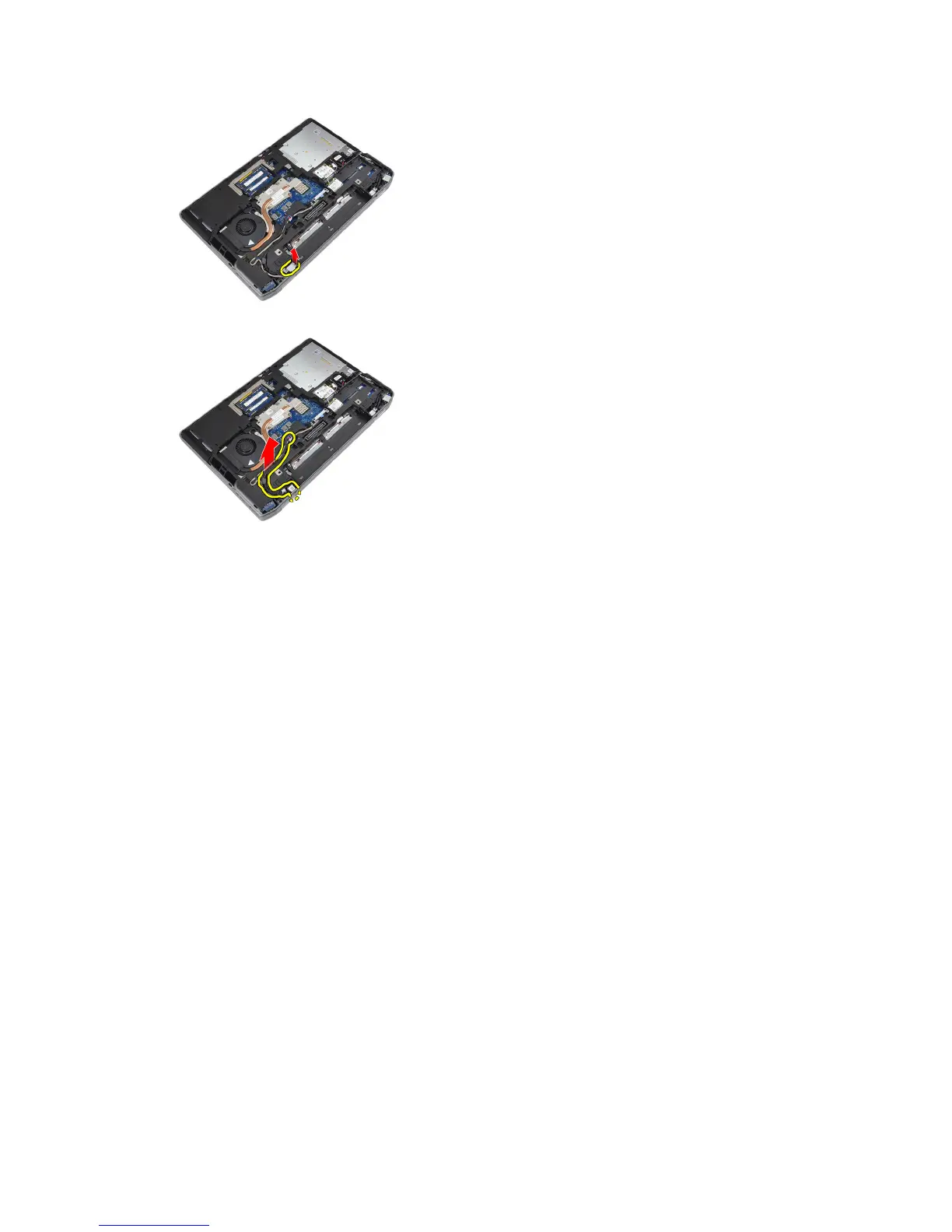

6. Remove the power-connector cable from the computer.
Installing the Power-Connector Port
1. Connect the power-connector cable to the computer.
2. Install the power-connector bracket to its position in the computer.
3. Tighten the screw to secure the power-connector bracket to the computer.
4. Connect the power-connector cable to the system board.
5. Install:
a) base cover
b) battery
6. Follow the procedures in
After Working Inside Your Computer
.
Removing the Power LED Board
1. Follow the procedures in
Before Working Inside Your Computer
.
2. Remove:
a) battery
b) base cover
c) hard drive
d) bluetooth module
e) keyboard trim
f) keyboard
g) display assembly
h) display bezel
i) display panel
3. Disconnect the power LED board cable.
