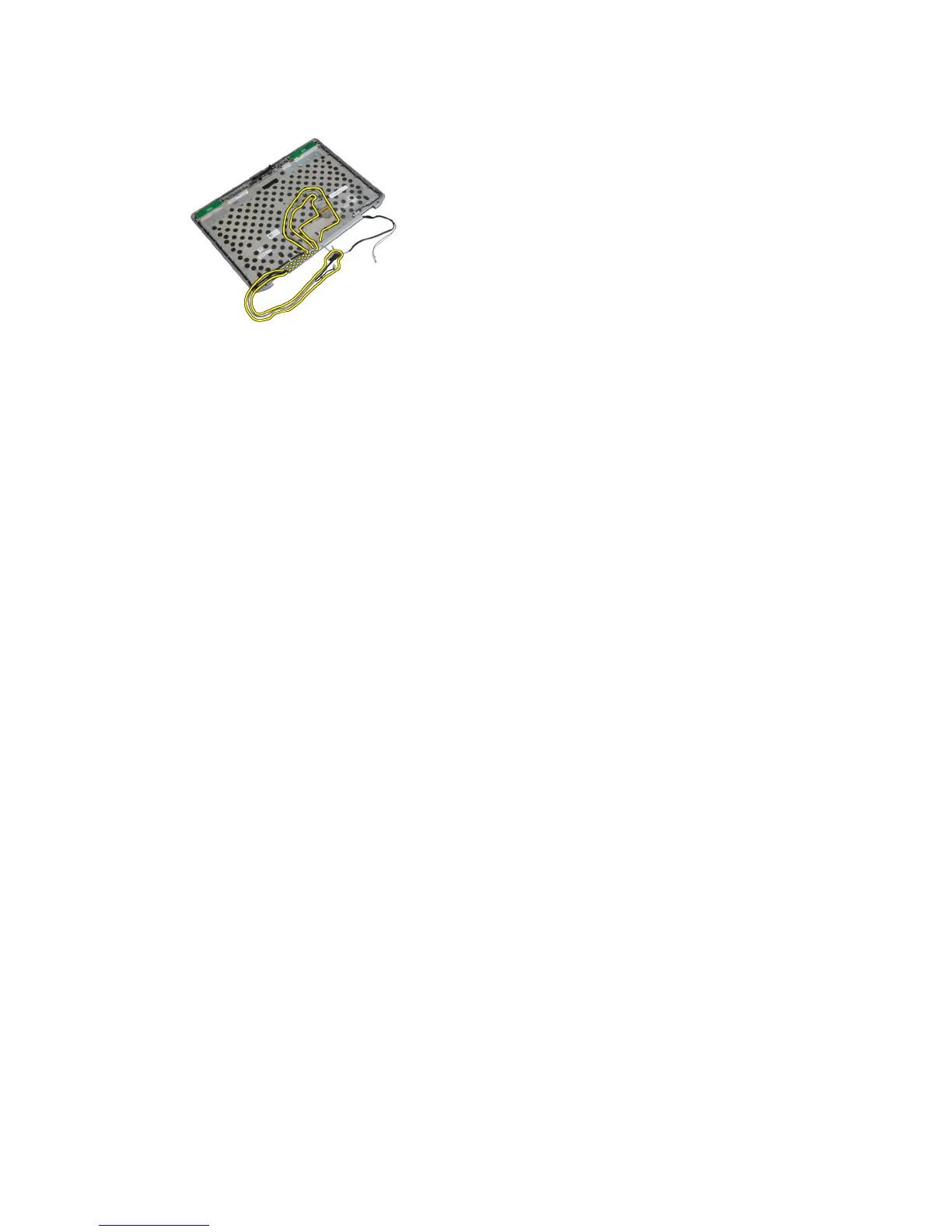

5. Remove the LVDS and camera cable from the display assembly.
Installing the LVDS and Camera Cable
1. Route the LVDS and camera cable on the display assembly.
2. Fix the adhesive the tape to secure the cable.
3. Connect the LVDS and camera cable to the camera.
4. Install:
a) display hinges
b) display panel
c) display bezel
d) display assembly
e) keyboard
f) keyboard trim
g) bluetooth card
h) hard drive
i) base cover
j) battery
5. Follow the procedures in
After Working Inside Your Computer
.
58
