Dell Latitude E6530 - Removing the Processor; Installing the Processor; Removing the WLAN Card

Removing the Processor
1. Follow the procedures in
Before Working Inside Your Computer .
2. Remove:
a) battery
b) base cover
c) heat sink

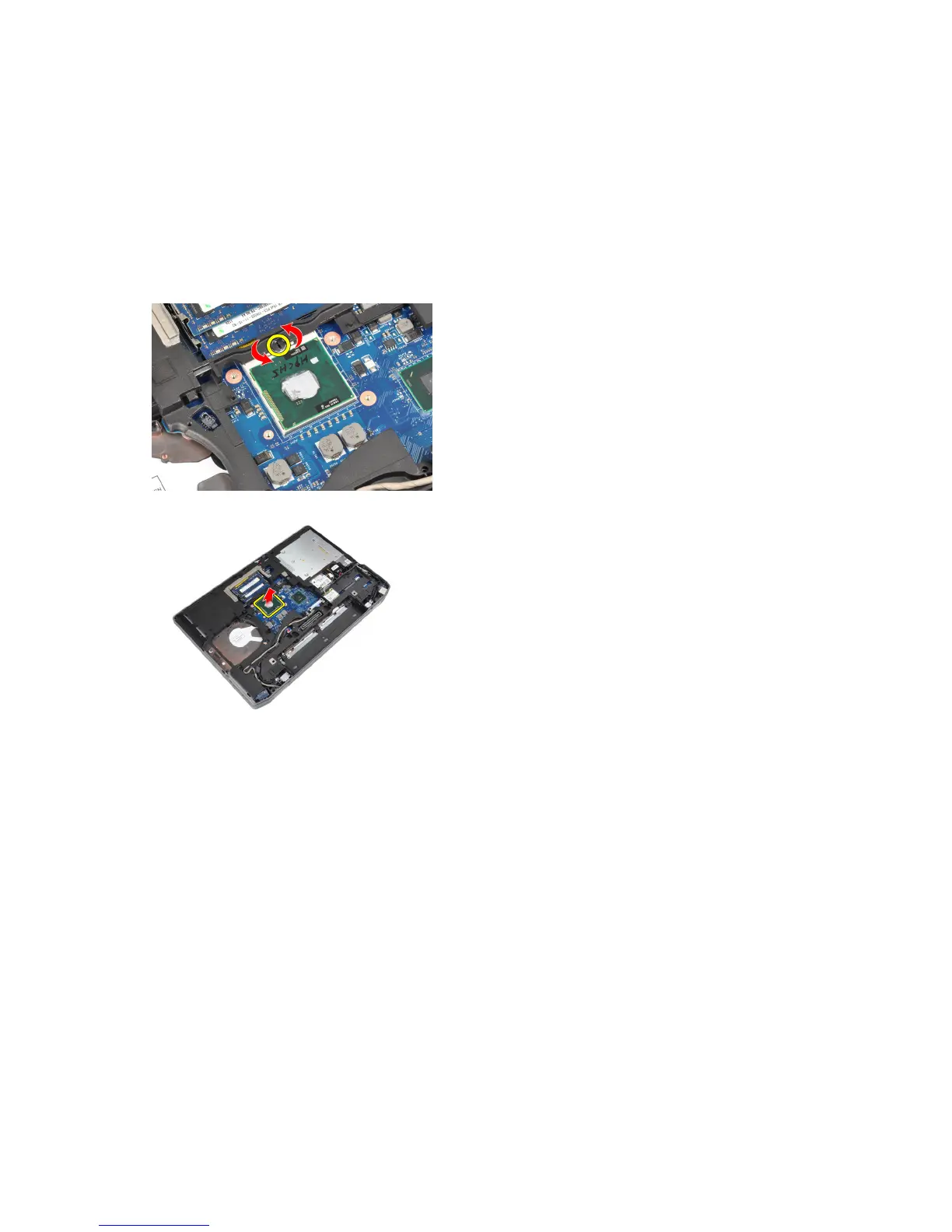

3. Rotate the processor cam lock in a counter-clockwise direction.
4. Remove the processor from the computer.
Installing the Processor
1. Align the notches on the processor and the socket, and insert the processor into the socket.
2. Rotate the processor cam lock in a clockwise direction.
3. Install:
a) heat sink
b) base cover
c) battery
4. Follow the procedures in
After Working Inside Your Computer .
Removing the Wireless Local Area Network (WLAN) Card
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove:
a) battery
b) base cover
