Dell Latitude E6530 - Removing the Bluetooth Card

Removing the Bluetooth Card
1. Follow the procedures in
Before Working Inside Your Computer .
2. Remove the:
a) battery
b) base cover

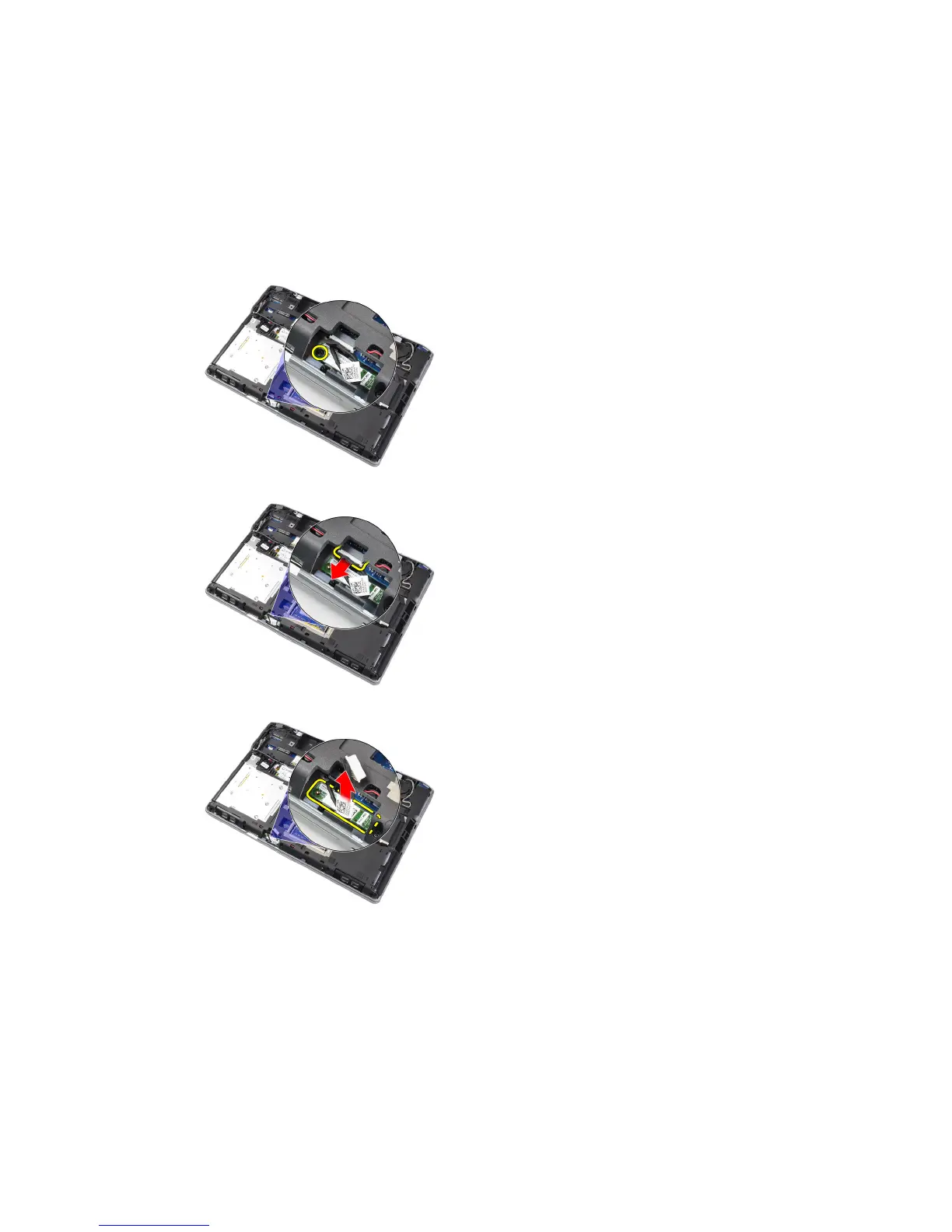

3. Remove the screw that secures the bluetooth card to the computer.
4. Disconnect the bluetooth cable from the system board.
5. Remove the bluetooth card from the computer
6. Disconnect the bluetooth cable from the bluetooth card.
25
