Dell Latitude E6530 - Installing the WiFi-Switch Board; Removing the System Board

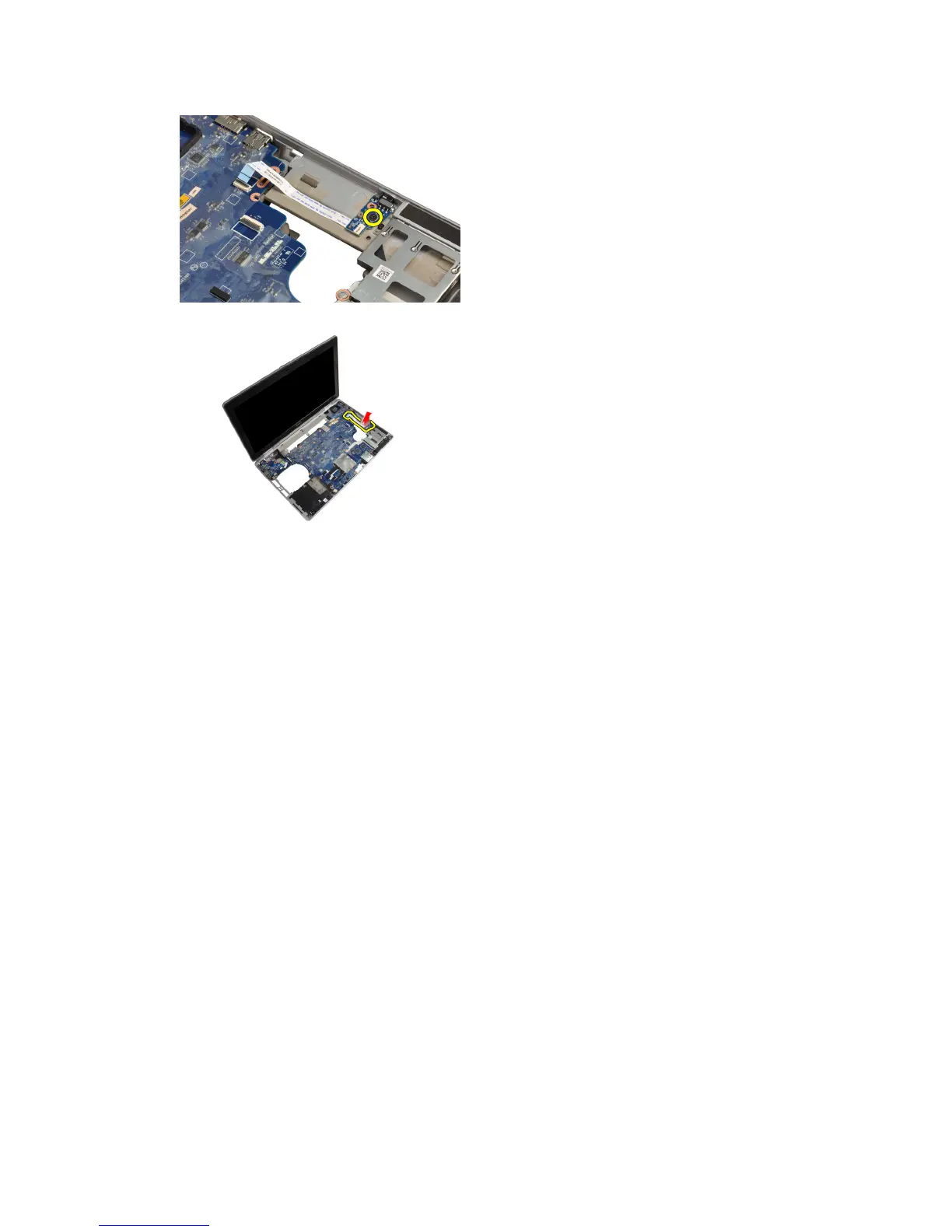

5. Peel of the adhesive tape on the back of the WiFi-switch board and remove the WiFi-switch board.
Installing the WiFi-Switch Board
1. Fix the adhesive tape on the back of the WiFi-switch board and place the board in its slot.
2. Tighten the screw to secure the WiFi-switch board.
3. Connect the WiFi-switch board cable to the system board.
4. Install:
a) palmrest
b) keyboard
c) keyboard trim
d) optical drive
e) hard drive
f) base cover
g) battery
5. Follow the procedures in
After Working Inside Your Computer .
Removing the System Board
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove:
a) battery
b) base cover
c) hard drive
d) optical drive
e) bluetooth card
f) keyboard trim
g) keyboard
39
