Dell Latitude E6530 - Page 40

h) WLAN card
i) modem card
j) heat sink
k) processor
l) palmrest
m) ExpressCard cage

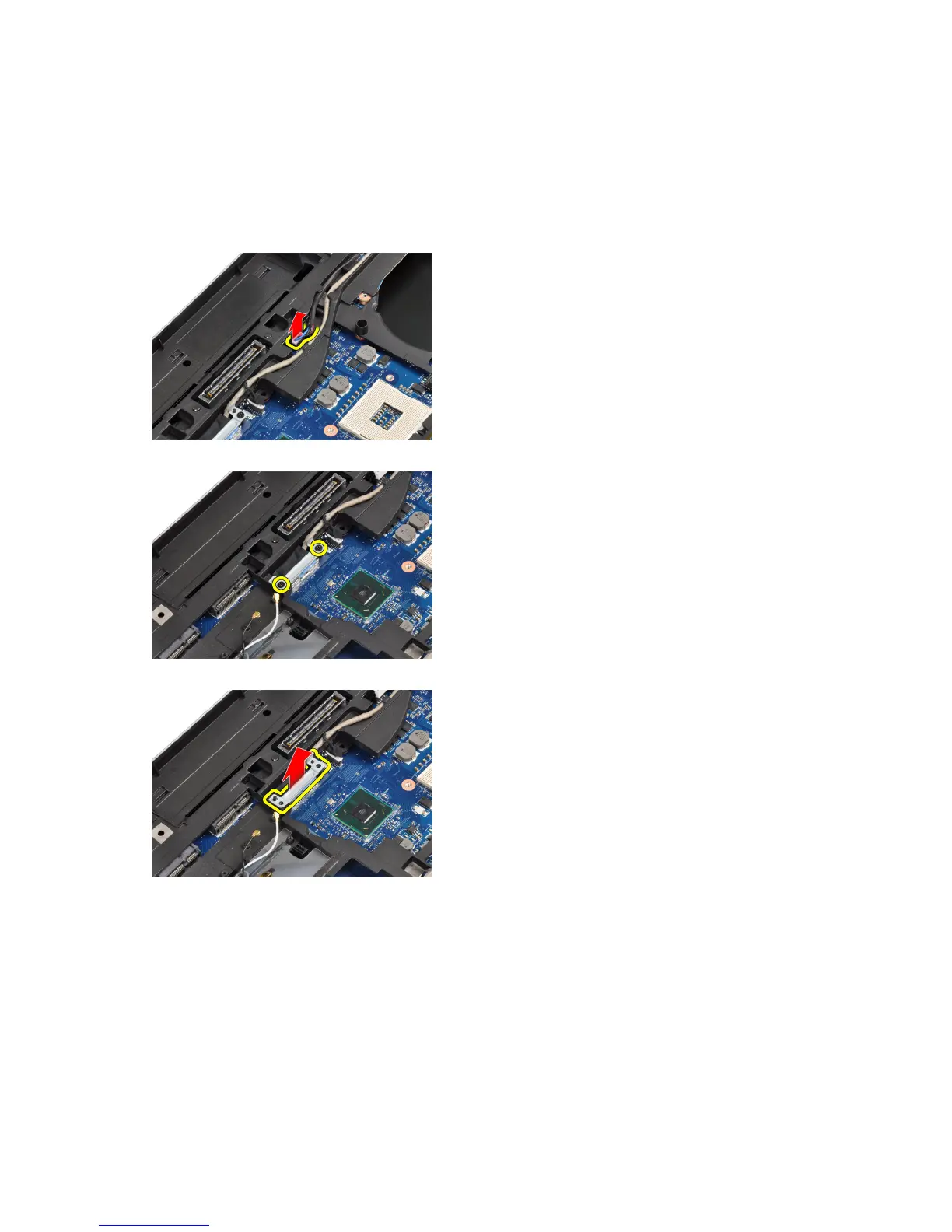

3. Disconnect the power-connector cable from the bottom side of the system board.
4. Remove the screws that secure the LVDS support bracket.
5. Remove the LVDS support bracket from the computer.
6. Disconnect the LVDS cable from the system board.
40
