Dell Latitude E6530 - Removing the Speakers

Removing the Speakers
1. Follow the procedures in
Before Working Inside Your Computer .
2. Remove:
a) battery
b) base cover
c) hard drive
d) keyboard trim
e) keyboard
f) display assembly
g) palmrest
h) media board (available in E6430/E6430 ATG only)
i) ExpressCard cage
j) bluetooth card
k) system board

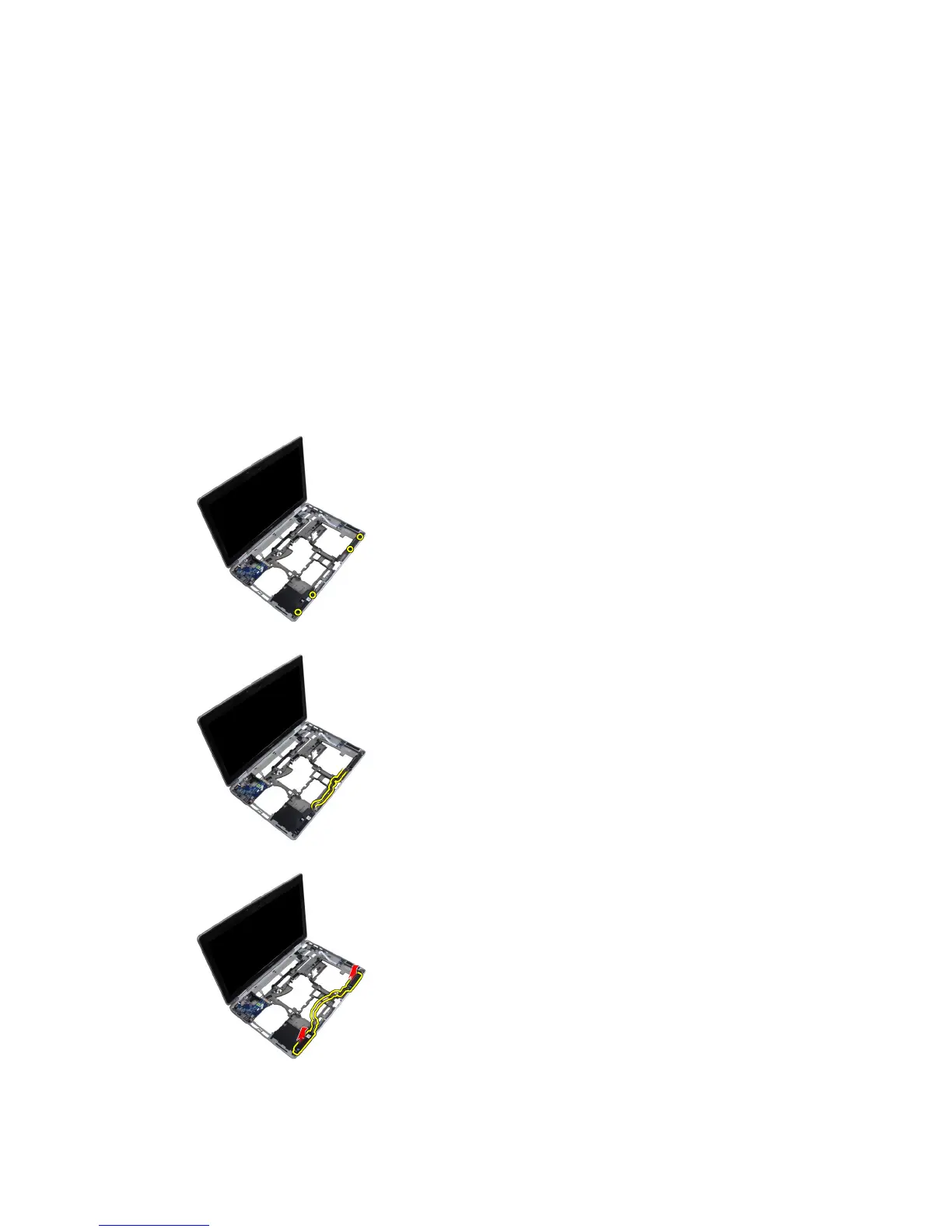

3. Remove the screws that secure the speakers to the computer.
4. Remove the speaker cable from the routing channel.
5. Remove the speakers from the computer.
28
