Dell Latitude E6530 - Page 46

b) base cover

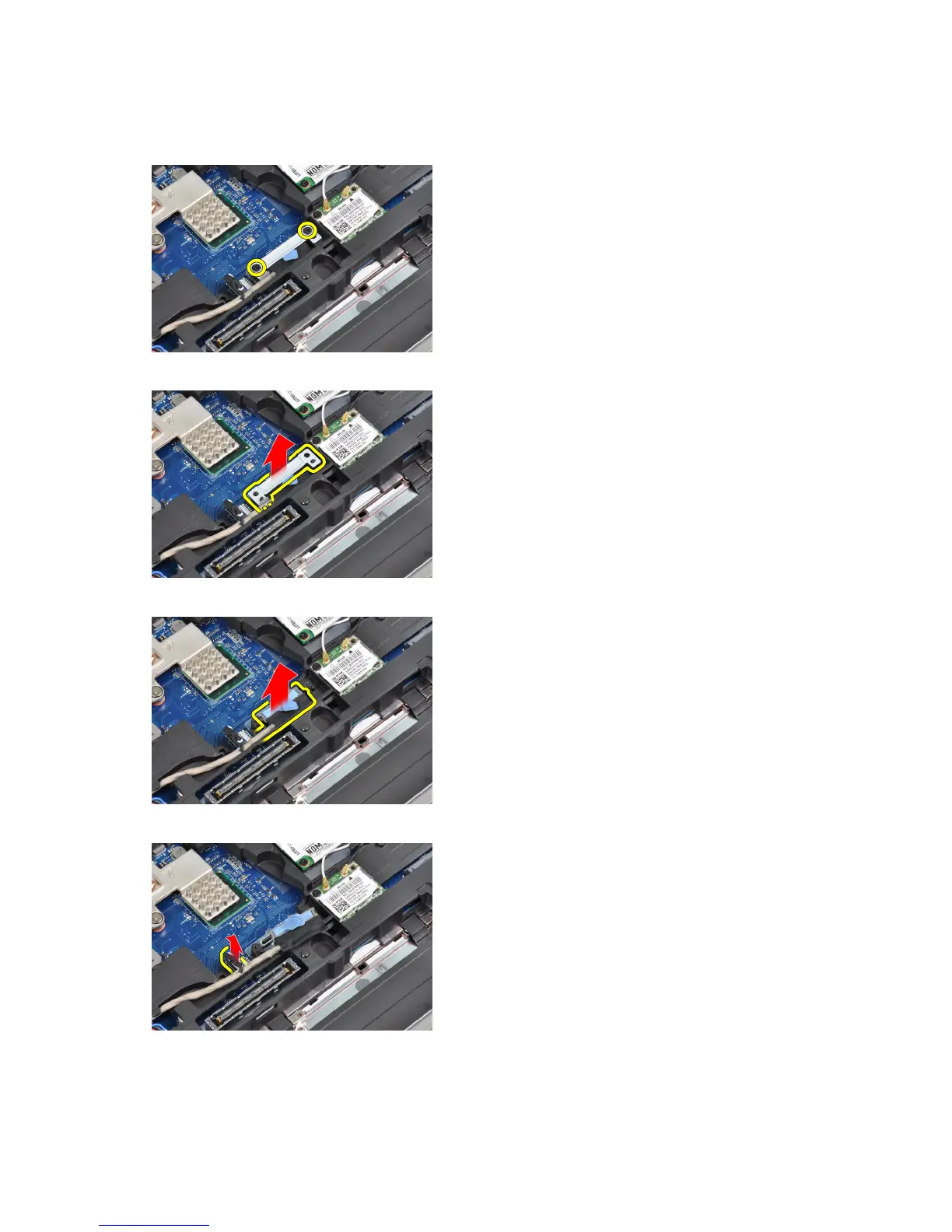

3. Remove the screws that secure the LVDS support bracket to the system board.
4. Remove the LVDS support bracket from the system board.
5. Disconnect the LVDS cable.
6. Disconnect the camera cable from the system board.
7. Remove the LVDS cable from the routing channel.
46
