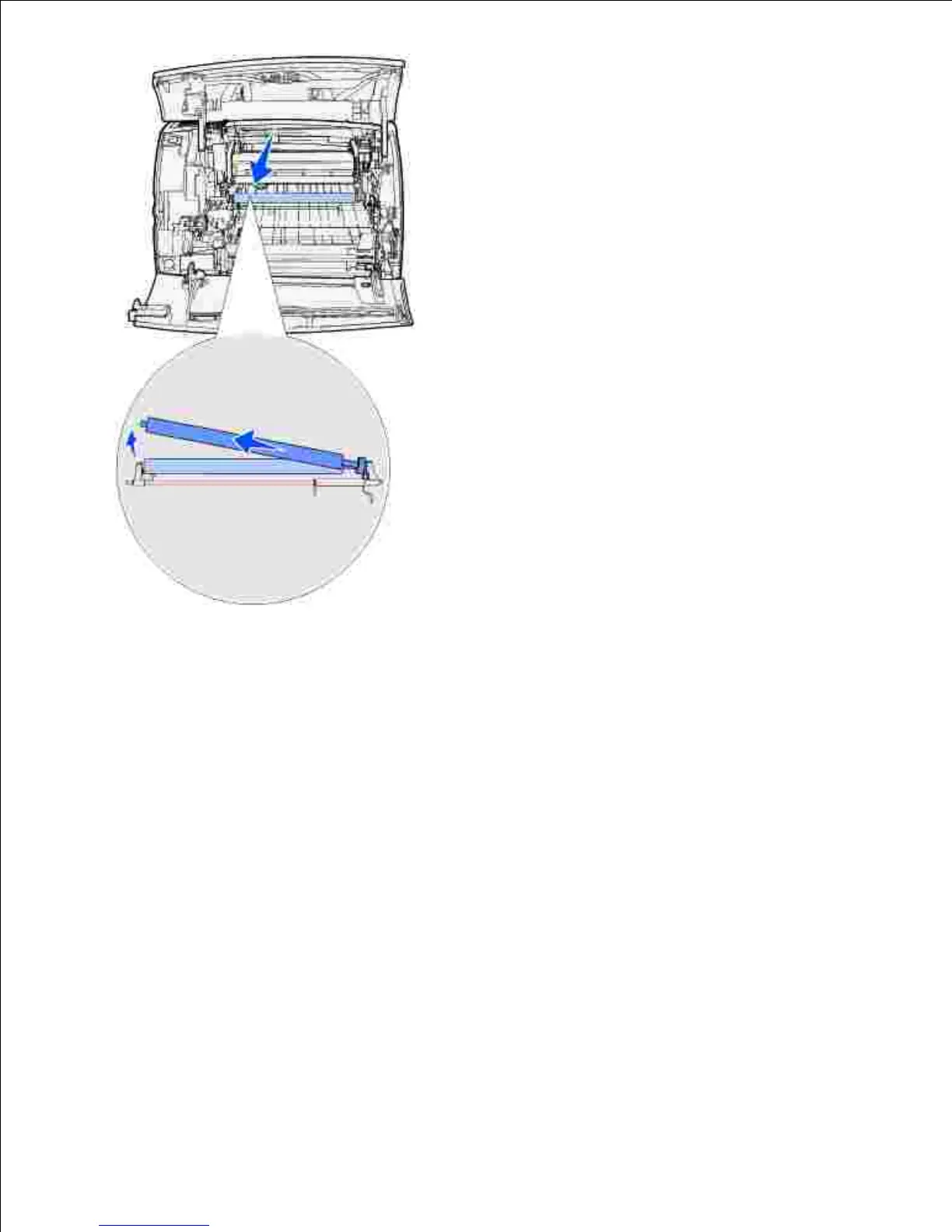

Pull the transfer roller to the left to loosen the right side and then pull it straight out of the printer. Set

it aside.
