Remove any packaging from the new transfer roller.6.

Grasp the transfer roller on the left side as shown.7.

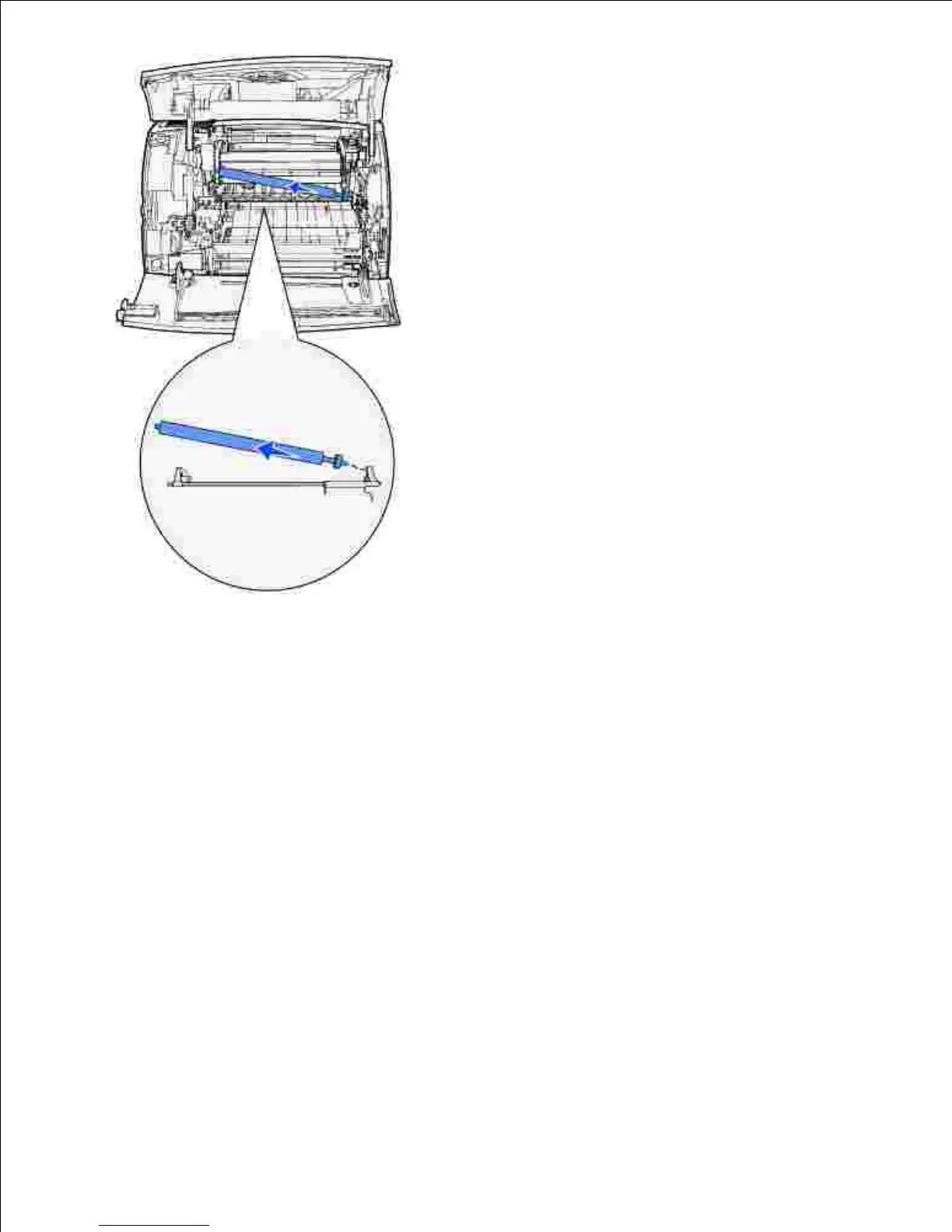

Locate the small hole and insert the metal tab on the right side of the transfer roller into the hole.8.
