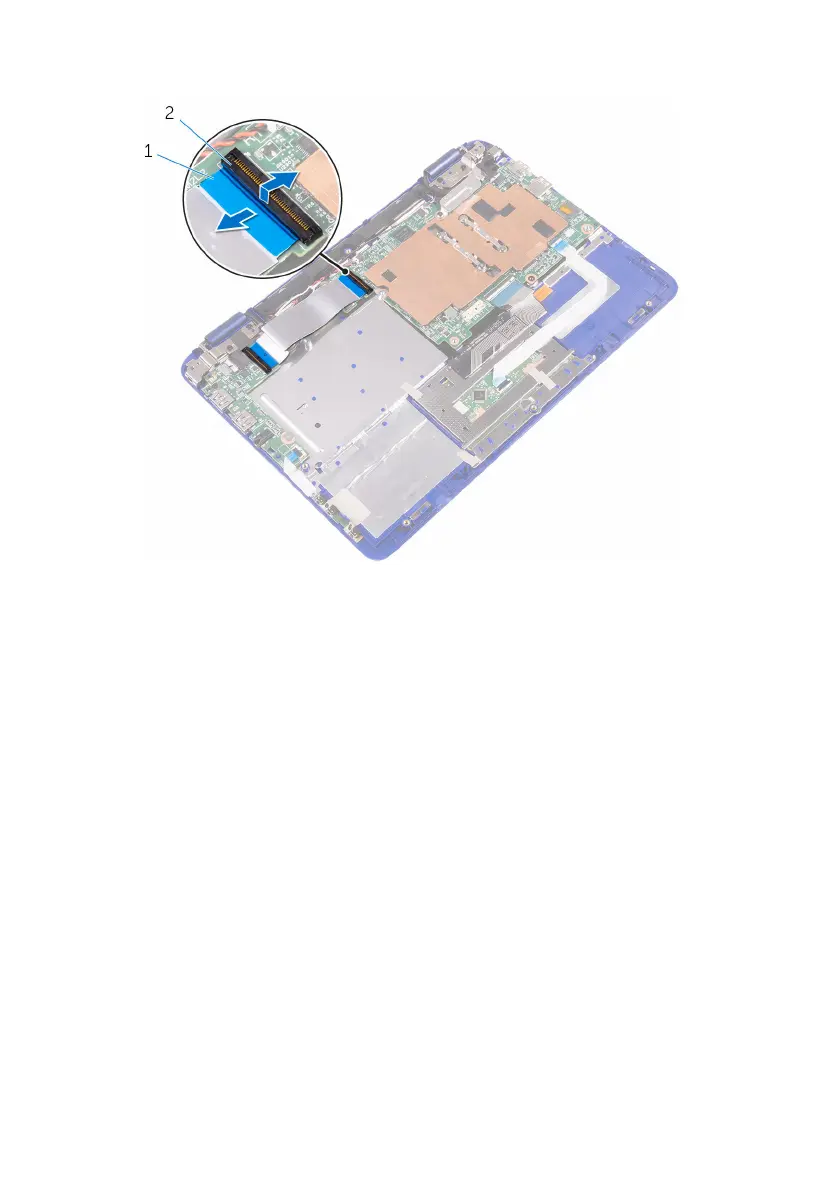

2 Turn the I/O-board cable over to expose the coin-cell battery.

1 I/O-board cable 2 latch

3 Disconnect the coin-cell battery cable from the system board.

4 Take out the antenna and coin-cell battery cables from its routing guide on the

right speaker.
