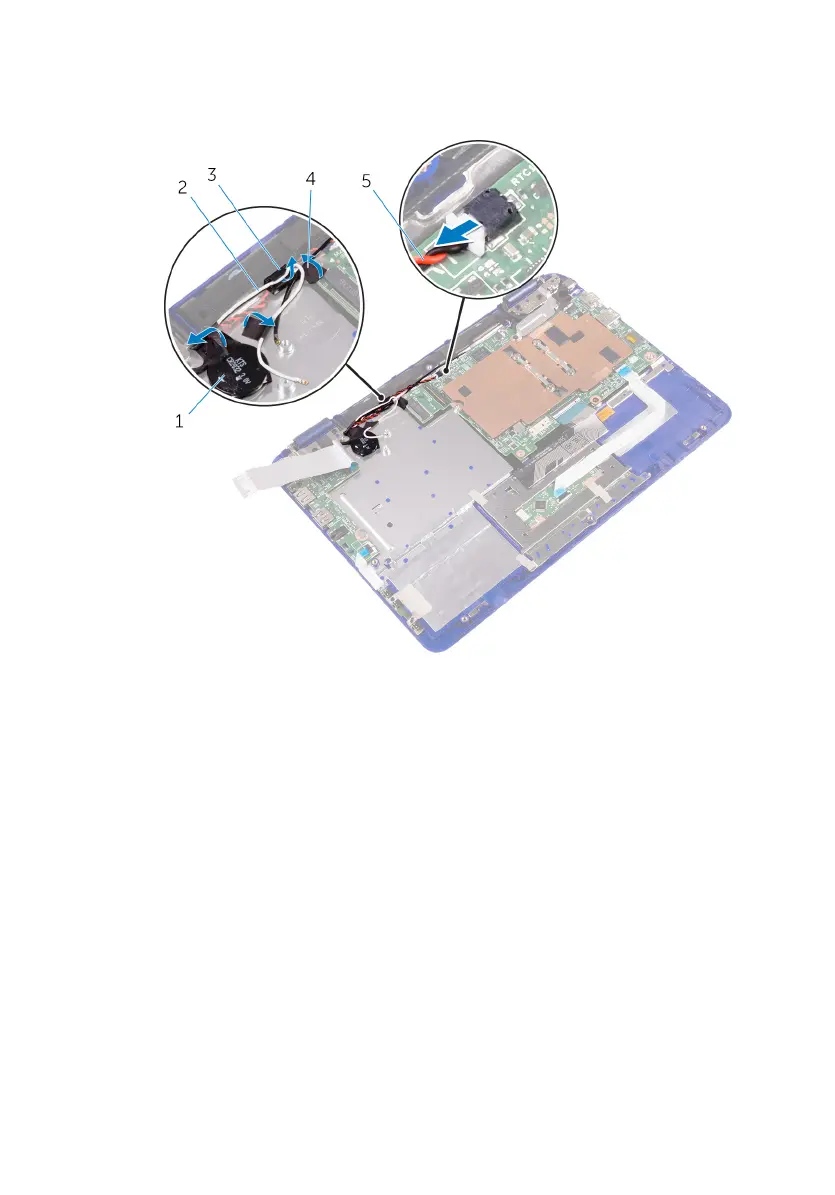

5 Peel the tape from the antenna cables and coin-cell battery.

1 coin-cell battery 2 antenna cable

3 routing guide 4 tape

5 coin-cell battery cable
