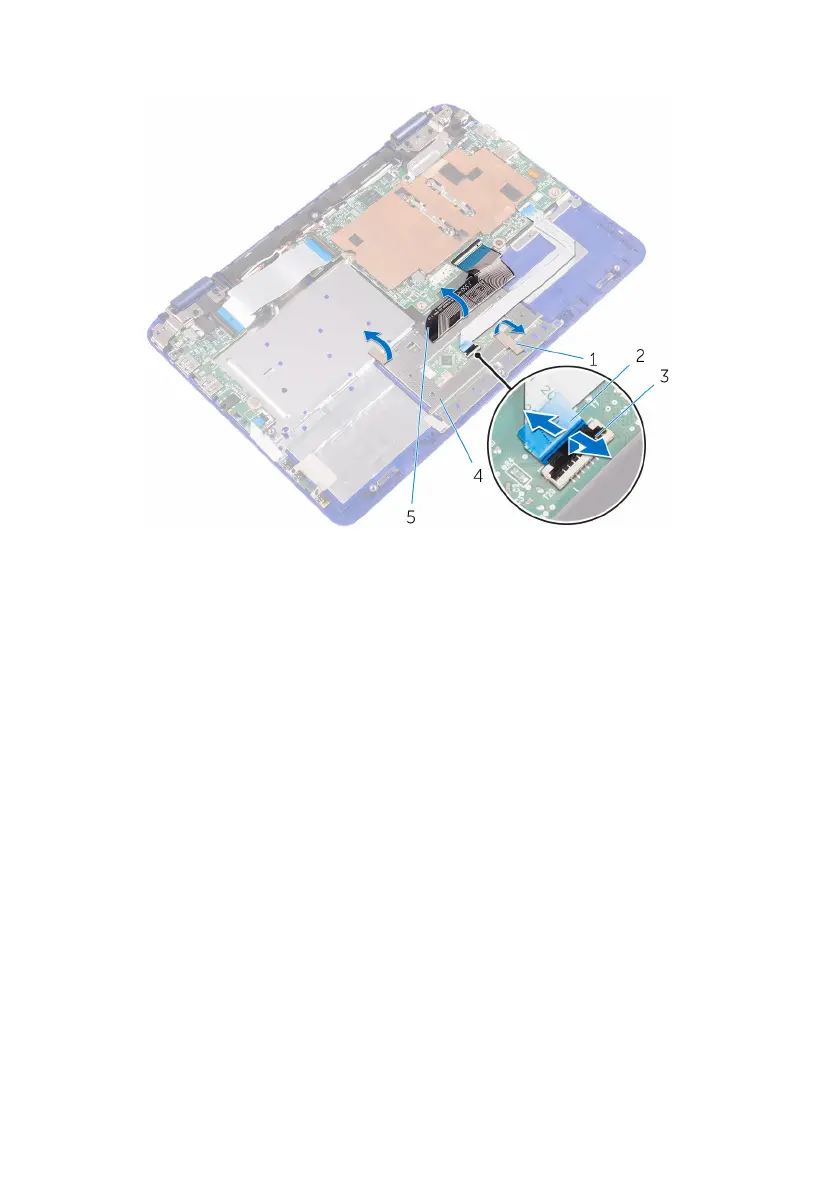

3 Turn the keyboard cable over and place it on the system board.

1 pieces of tapes 2 touch-pad cable

3 latch 4 touch pad

5 keyboard cable

4 Remove the screws that secure the touch pad to the palmrest and keyboard

assembly.
