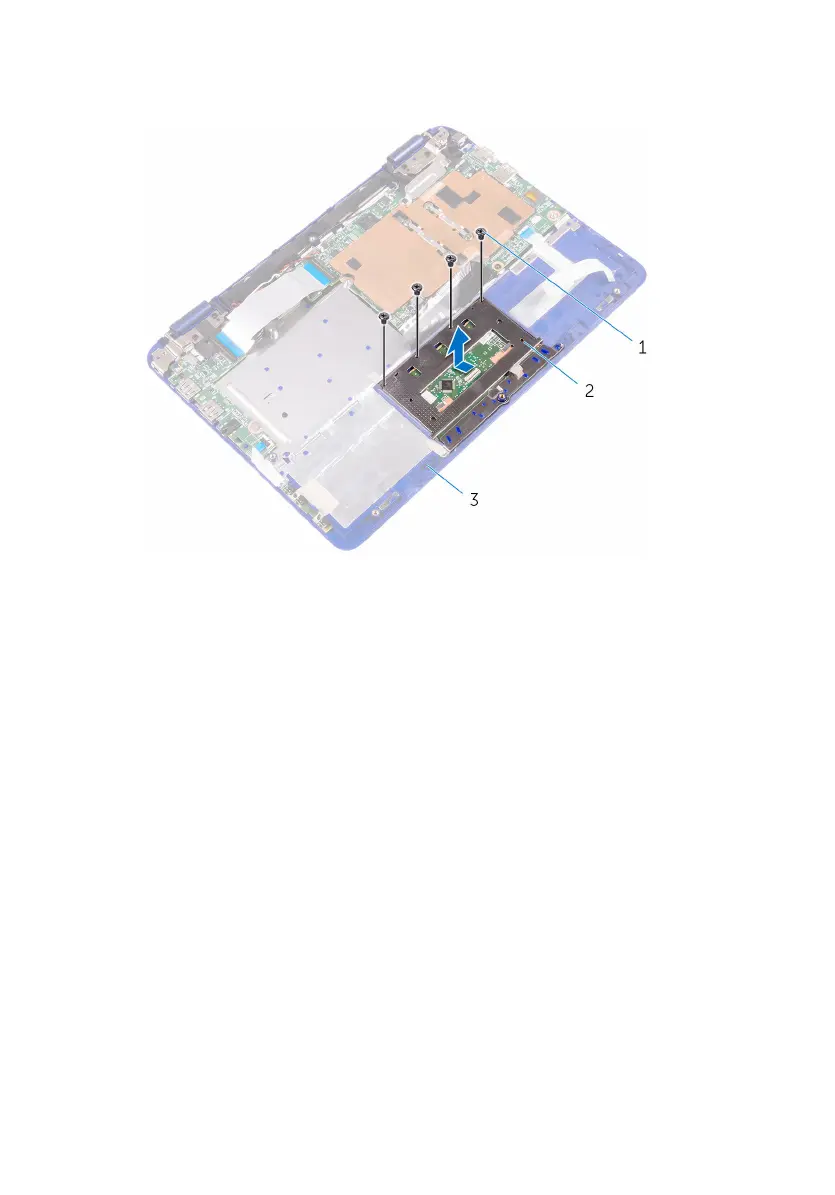

5 Slide and remove the touch pad away from the palmrest and keyboard assembly.

1 screws (4) 2 touch pad

3 palmrest and keyboard

assembly
