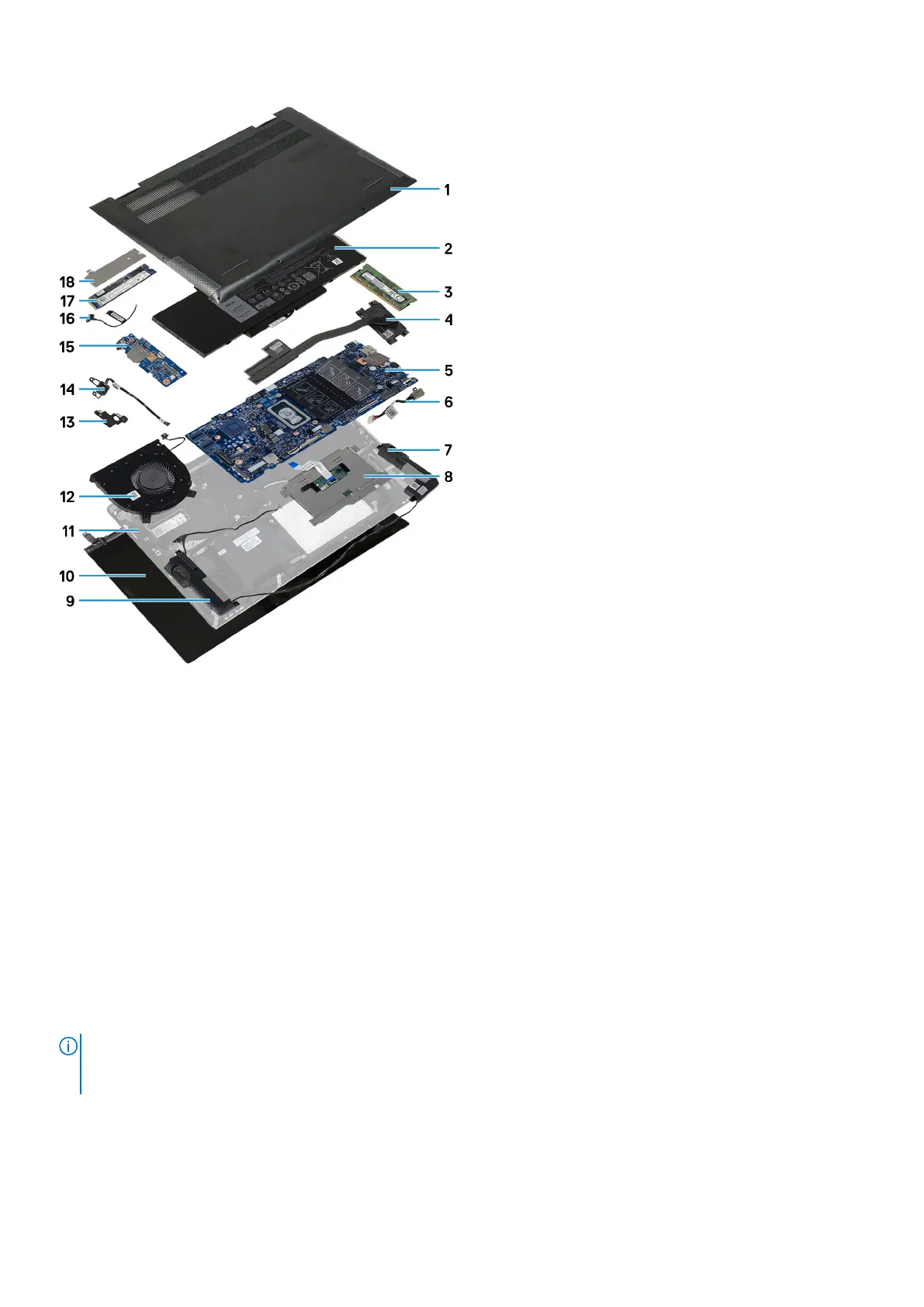

1. Base cover
2. Battery
3. Memory module
4. Heat sink
5. System board
6. Power-adapter port
7. Right speaker
8. Touchpad
9. Left speaker
10. Display assembly
11. Palm-rest and keyboard assembly
12. Fan
13. Power button with fingerprint reader bracket
14. Power button with fingerprint reader
15. I/O board
16. Pen-garage cable
17. Solid-state drive
18. Solid-state drive thermal bracket
NOTE:
Dell provides a list of components and their part numbers for the original system configuration purchased. These
parts are available according to warranty coverages purchased by the customer. Contact your Dell sales representative
for purchase options.
10 Removing and installing components
