Steps

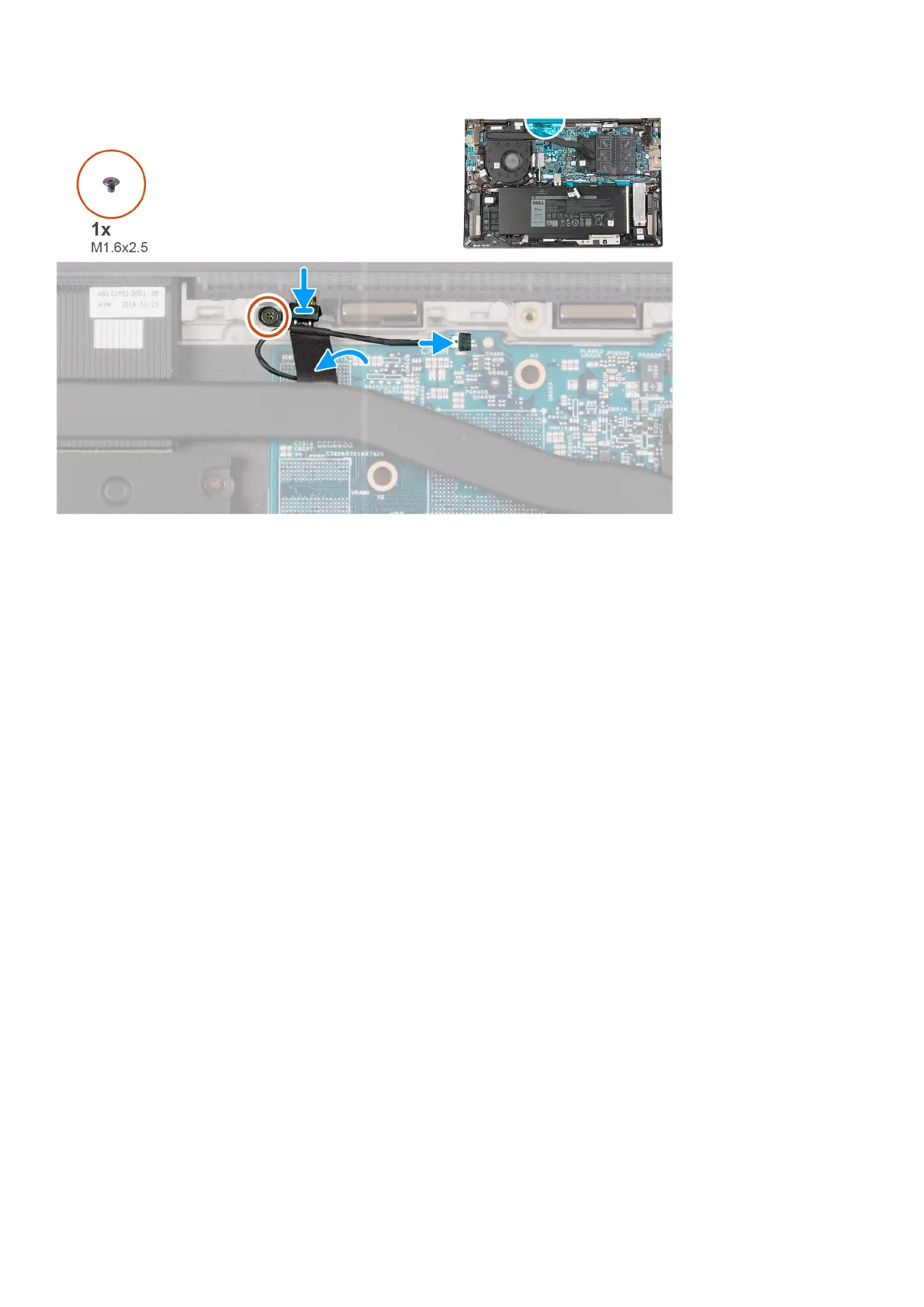

1. Align the screw hole on the pen-garage cable with the screw hole on the palm-rest and keyboard assembly.
2. Replace the screw (M1.6x2.5) that secures the pen-garage cable to the palm-rest and keyboard assembly.
3. Adhere the tape to secure the pen-garage cable to the system board.
4. Connect the pen-garage cable to the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Solid-state drive
Removing the M.2 2230 solid-state drive
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following image indicates the location of the M.2 2230 solid-state drive and provides a visual representation of the removal procedure.
Removing and installing components
31
