About this task

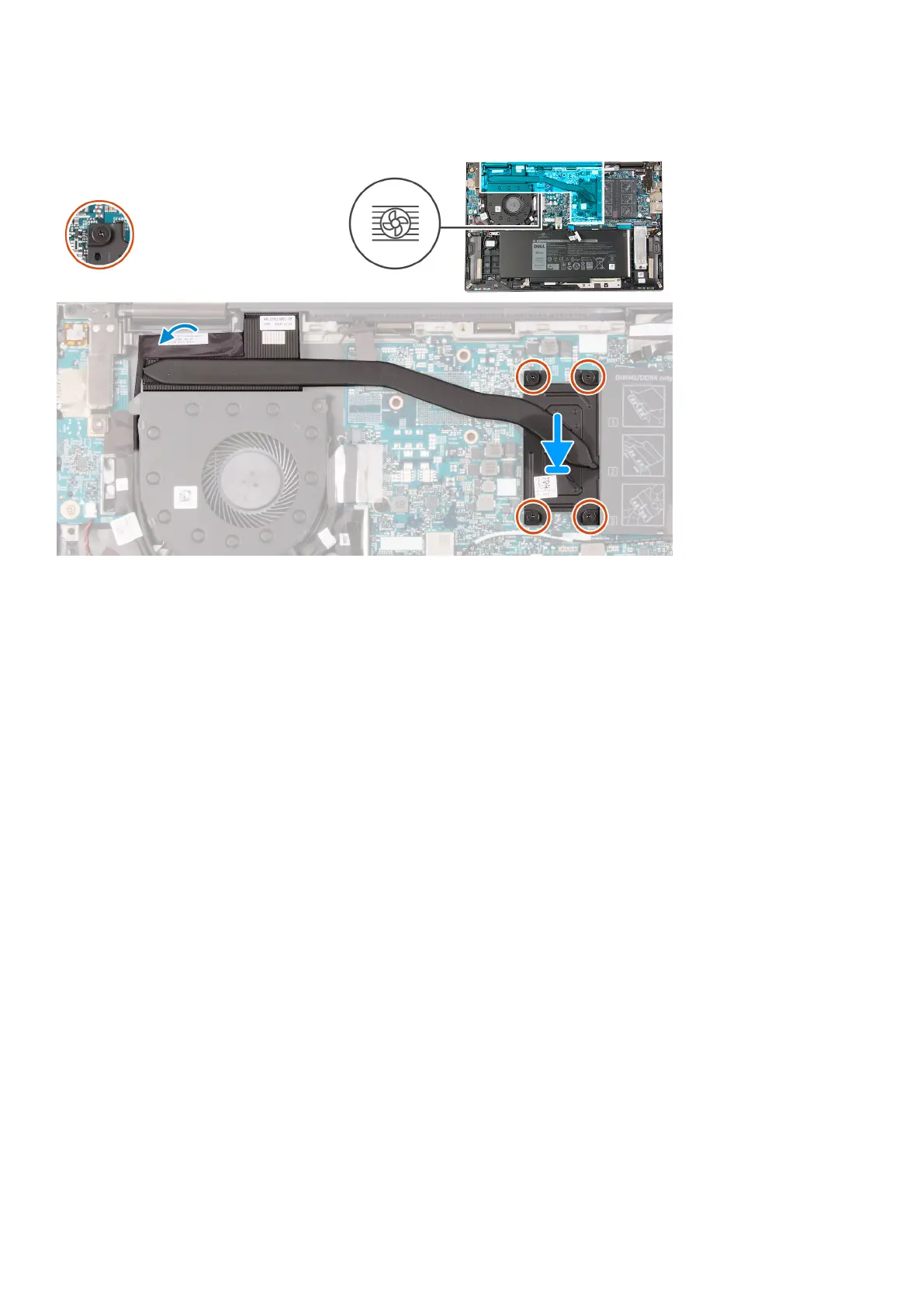

The following image indicates the location of the heat sink and provides a visual representation of the installation procedure.
Steps
1. Align the screw holes on the heat sink with the screw holes on the system board.
2. In sequential order (as indicated on the heat sink), tighten the four captive screws that secure the heat sink to the system board.
3. Adhere the tape that secures the touchscreen cable to the heat sink.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Power-adapter port
Removing the power-adapter port
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following image indicates the location of the power-adapter port and provides a visual representation of the removal procedure.
Removing and installing components
25
