About this task

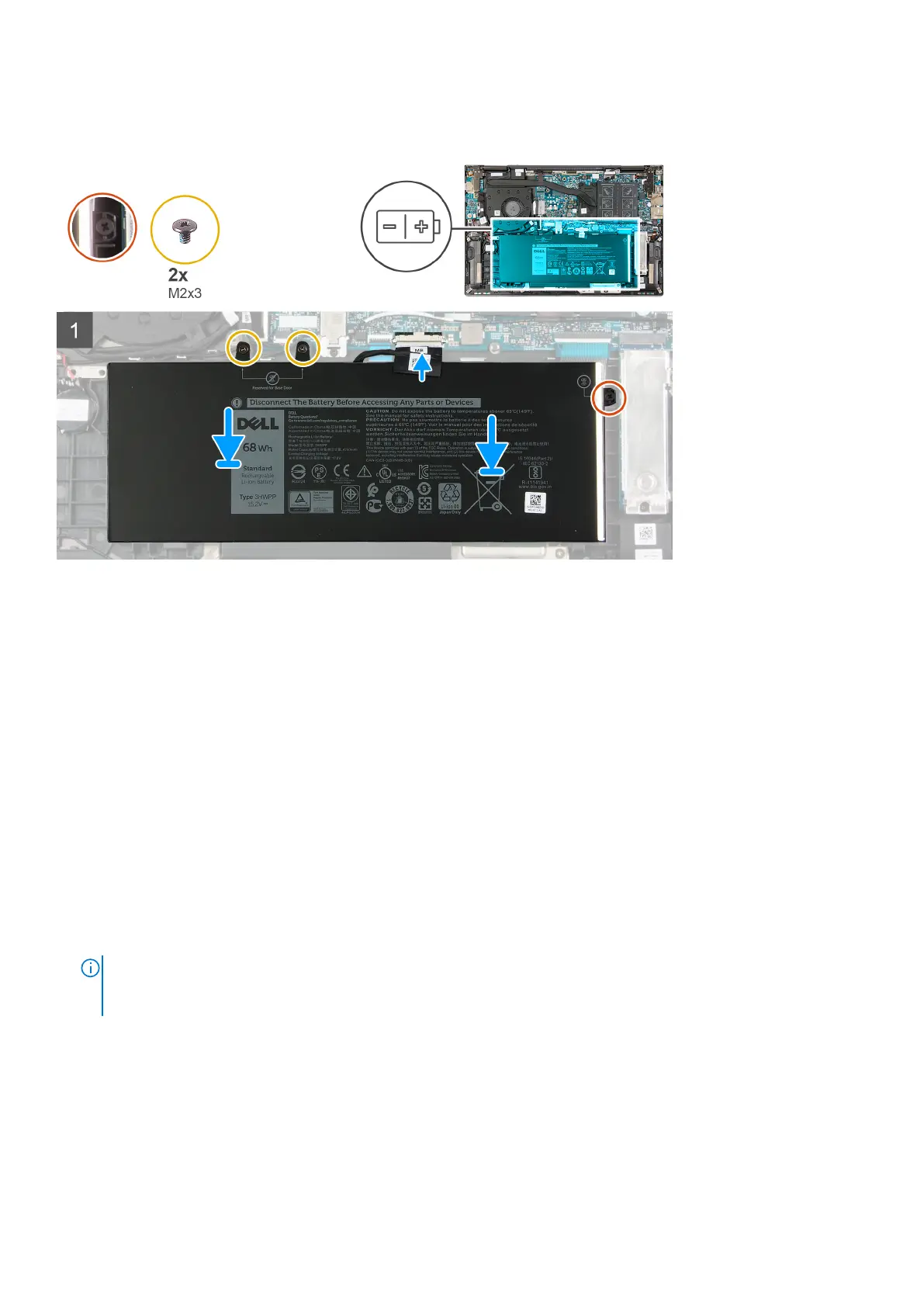

The following image indicates the location of the battery and provides a visual representation of the installation procedure.
Steps
1. Using the alignment posts, place the battery on the palm-rest and keyboard assembly.
2. Replace the two screws (M2x3) that secure the battery to the palm-rest and keyboard assembly.
3. Tighten the captive screw that secures the battery to the palm-rest and keyboard assembly.
4. Connect the battery cable to the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Coin-cell battery
Removing the coin-cell battery
Prerequisites
1. Follow the procedure in Before working inside your computer.
NOTE:
Removing the I/O-board cable is equivalent to removing the coin-cell battery. It resets the BIOS setup
program's settings to default. It is recommended that you note the BIOS setup program's settings before removing
the coin-cell battery.
2. Remove the base cover.
About this task
The following image indicates the location of the coin-cell battery and provides a visual representation of the removal procedure.
Removing and installing components
17
