Steps
1. Remove the two screws (M2x3.5) that secure the right display-hinge to the system board and palm-rest and keyboard assembly.
2. Remove the screw (M2.5x5) that secures the right display-hinge to the system board and palm-rest and keyboard assembly.
3. Open the right display hinge at an angle of 90 degrees.
4. Disconnect the power-adapter port cable from the system board.
5. Remove the screw (M2x3) that secures the power-adapter port to the palm-rest and keyboard assembly.
6. Remove the power-adapter port cable from the routing guide on the palm-rest and keyboard assembly.
7. Lift the power-adapter port along with its cable, off the palm-rest and keyboard assembly.
Installing the power-adapter port
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

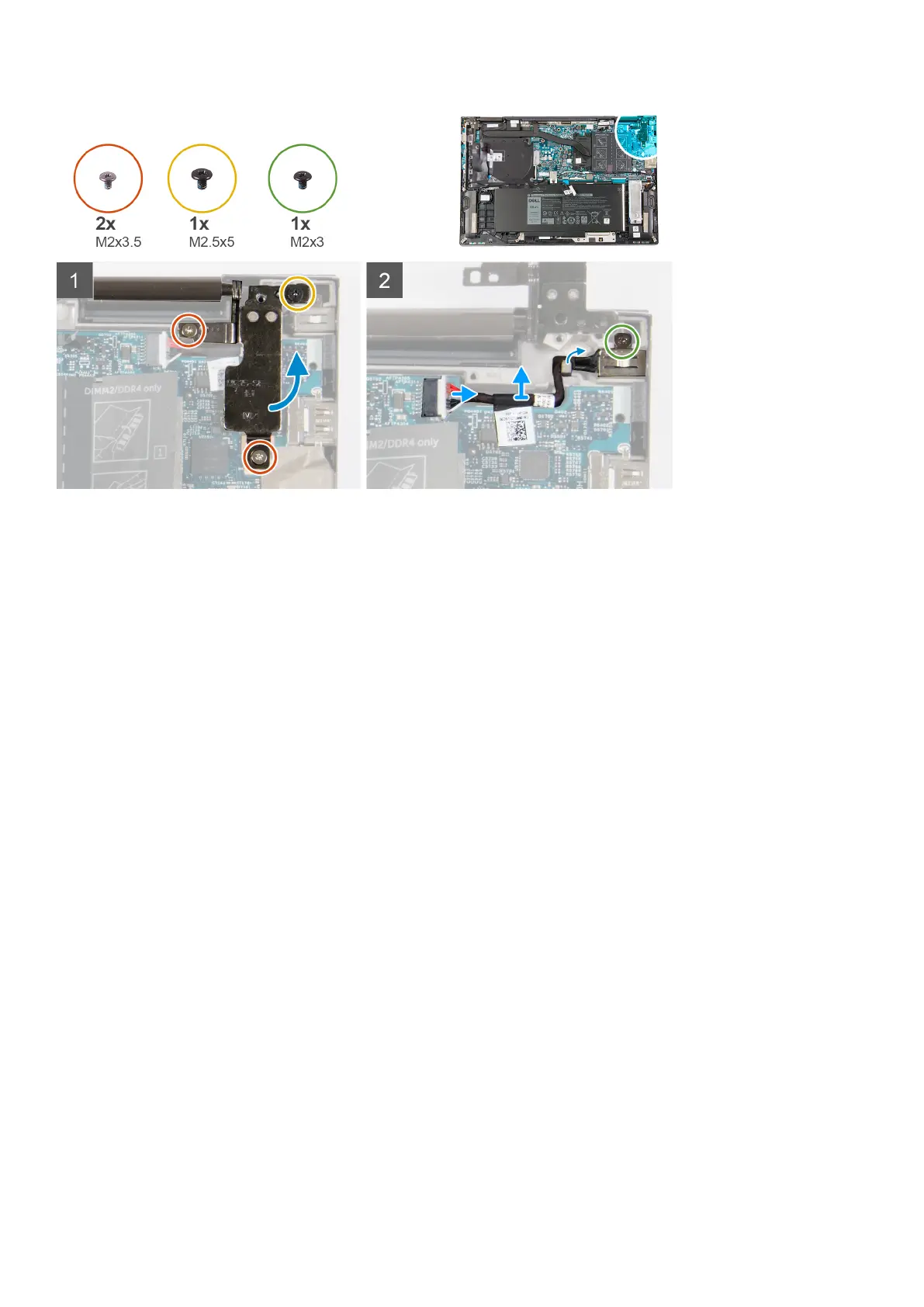

The following image indicates the location of the power-adapter port and provides a visual representation of the installation procedure.
26
