Steps
1. Disconnect the pen-garage cable from the system board.
2. Peel the tape that secures the pen-garage cable to the system board.
3. Remove the screw (M1.6x2.5) that secures the pen-garage cable to the palm-rest and keyboard assembly.
4. Lift the pen-garage cable off the palm-rest and keyboard assembly.
Installing the pen-garage cable
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

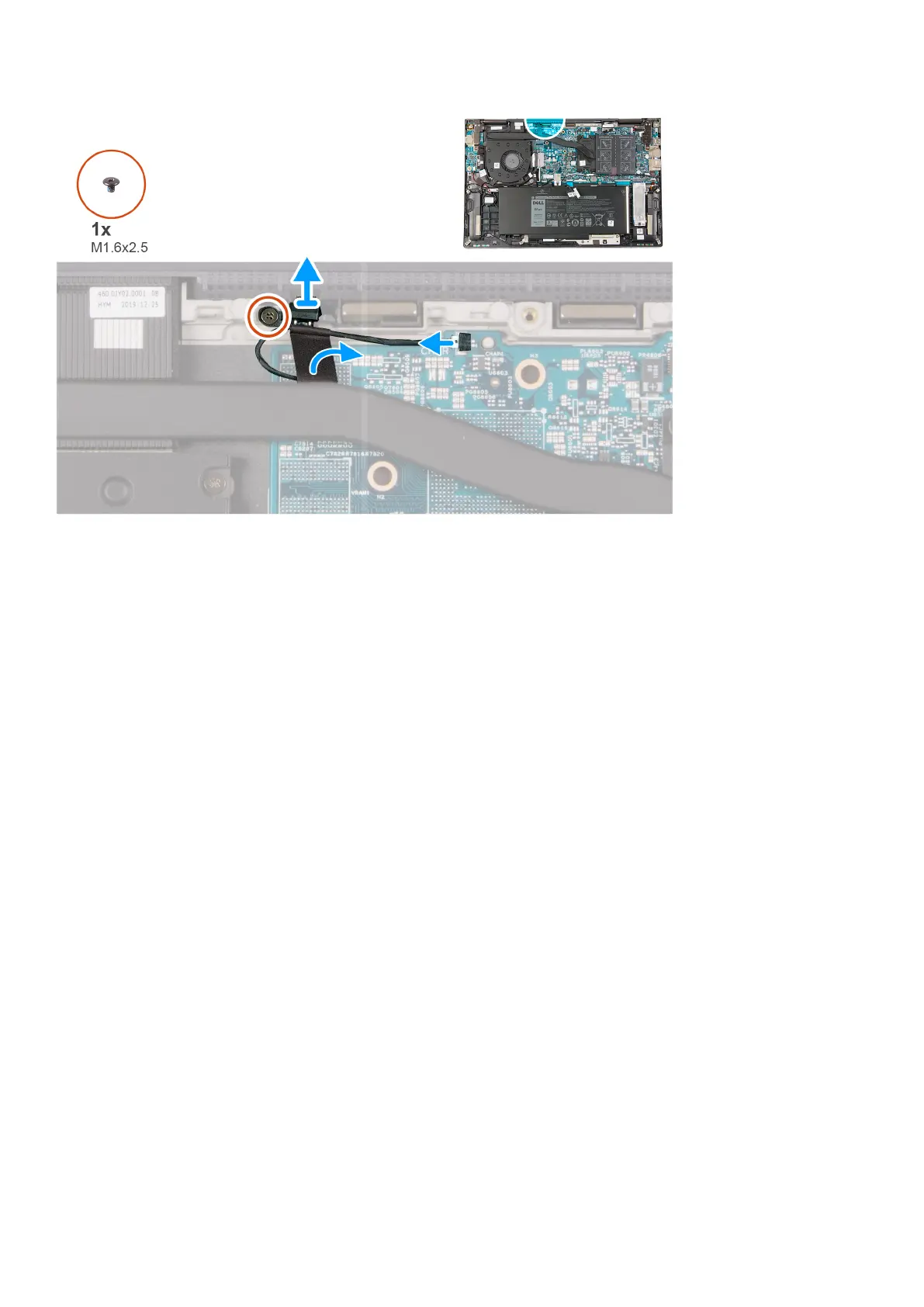

The following image indicates the location of the pen-garage cable and provides a visual representation of the installation procedure.
