Steps
1. Lift the flap to access the memory module.
2. Use your fingertips to carefully spread apart the securing-clips on each end of the memory-module slot until the memory module pops
up.
3. Slide and remove the memory module from the memory-module slot.
NOTE: Repeat step 2 to step 3 to remove any other memory modules installed in your computer.
Installing the memory modules
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

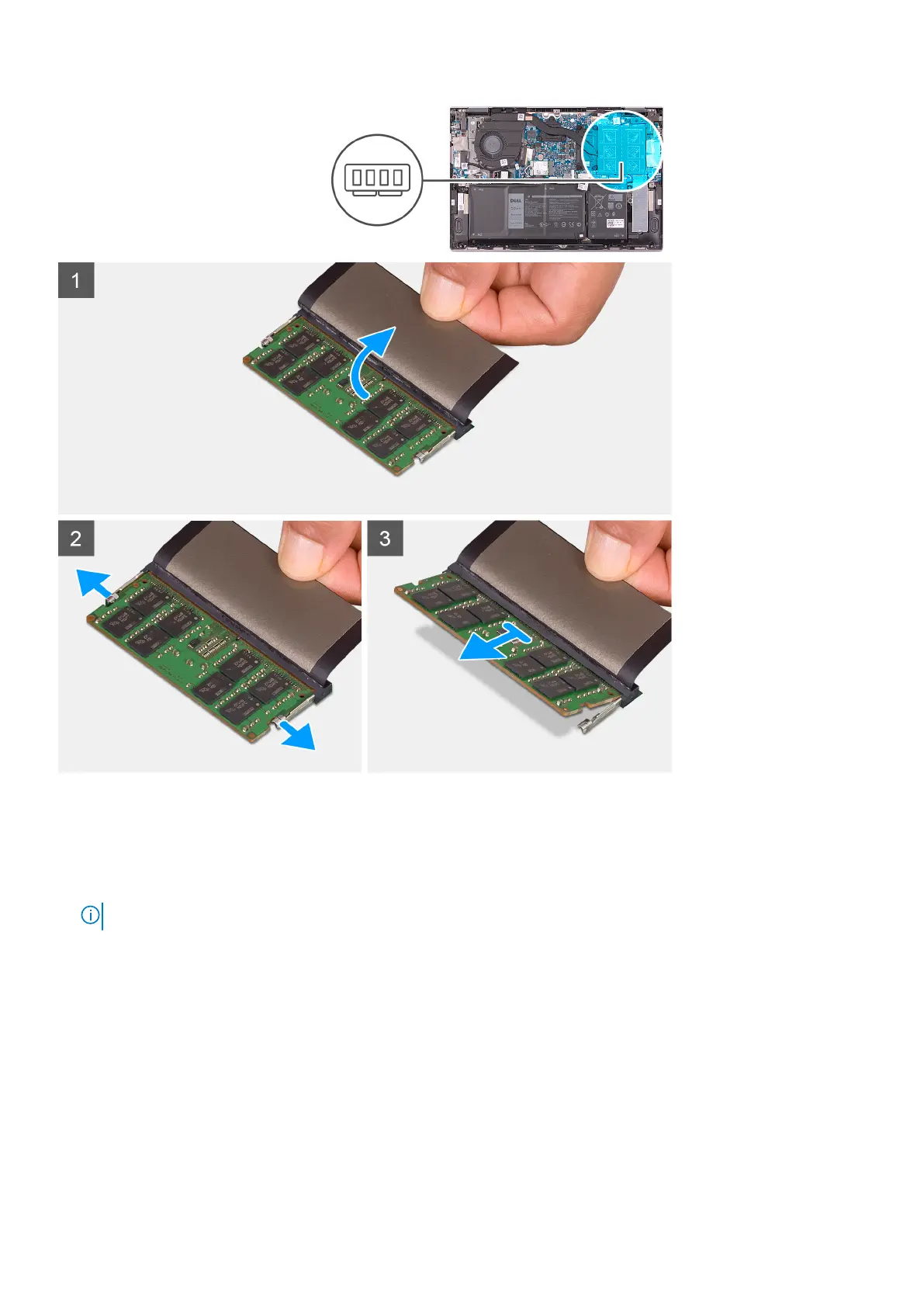

The following image indicates the location of the memory modules and provides a visual representation of the installation procedure.
20
Removing and installing components
