Speakers
Removing the speakers
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
About this task

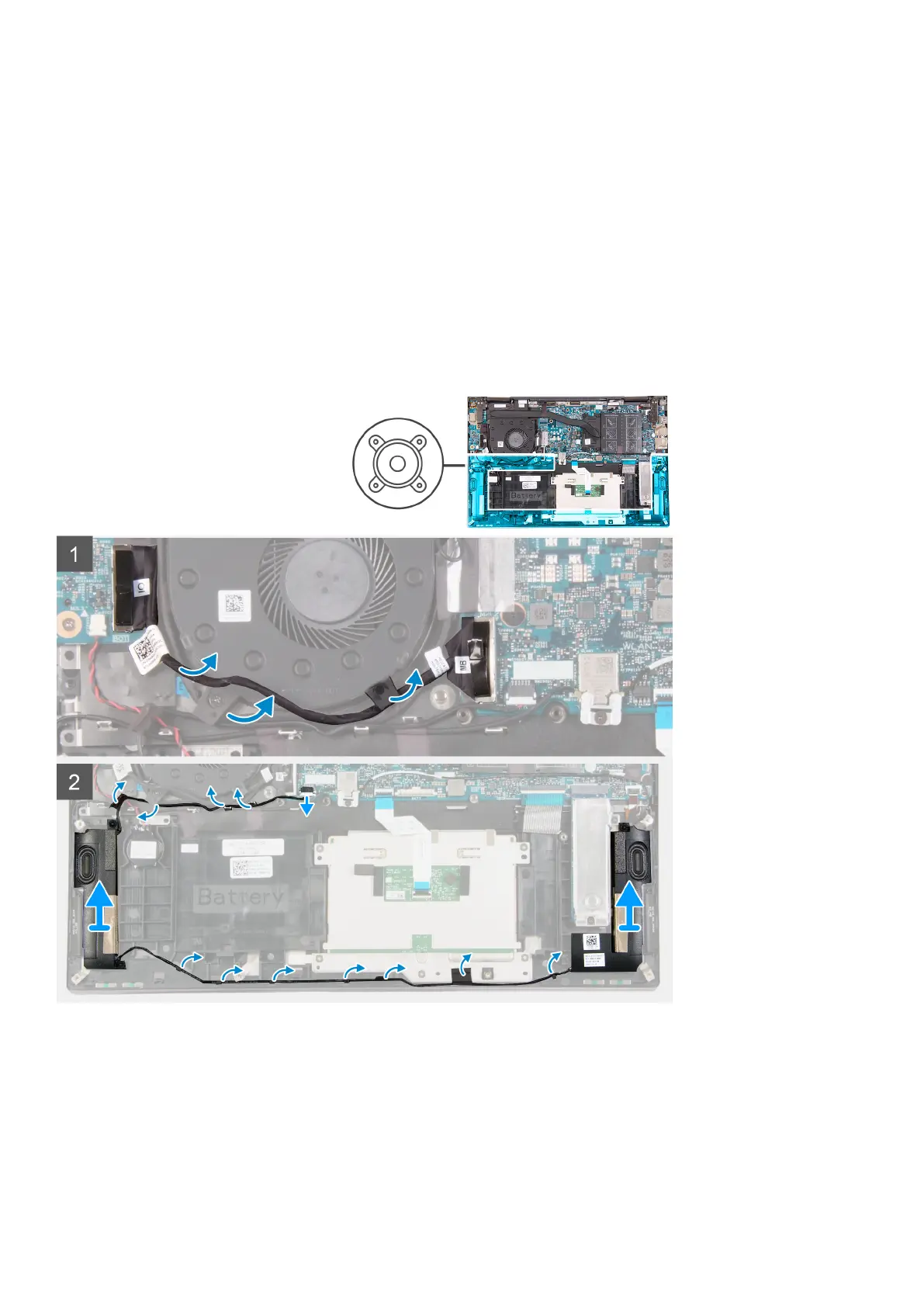

The following image indicates the location of the speakers and provides a visual representation of the removal procedure.
Steps
1. Remove the I/O-board cable from the routing guides on the fan.
2. Disconnect the speaker cable from the system board.
3. Peel the tape that secures the speaker cable to the palm-rest and keyboard assembly.
4. Remove the speaker cable from the routing guides on the palm-rest and keyboard assembly.
5. Lift both the speakers along with the cables, off the palm-rest and keyboard assembly.
