Steps

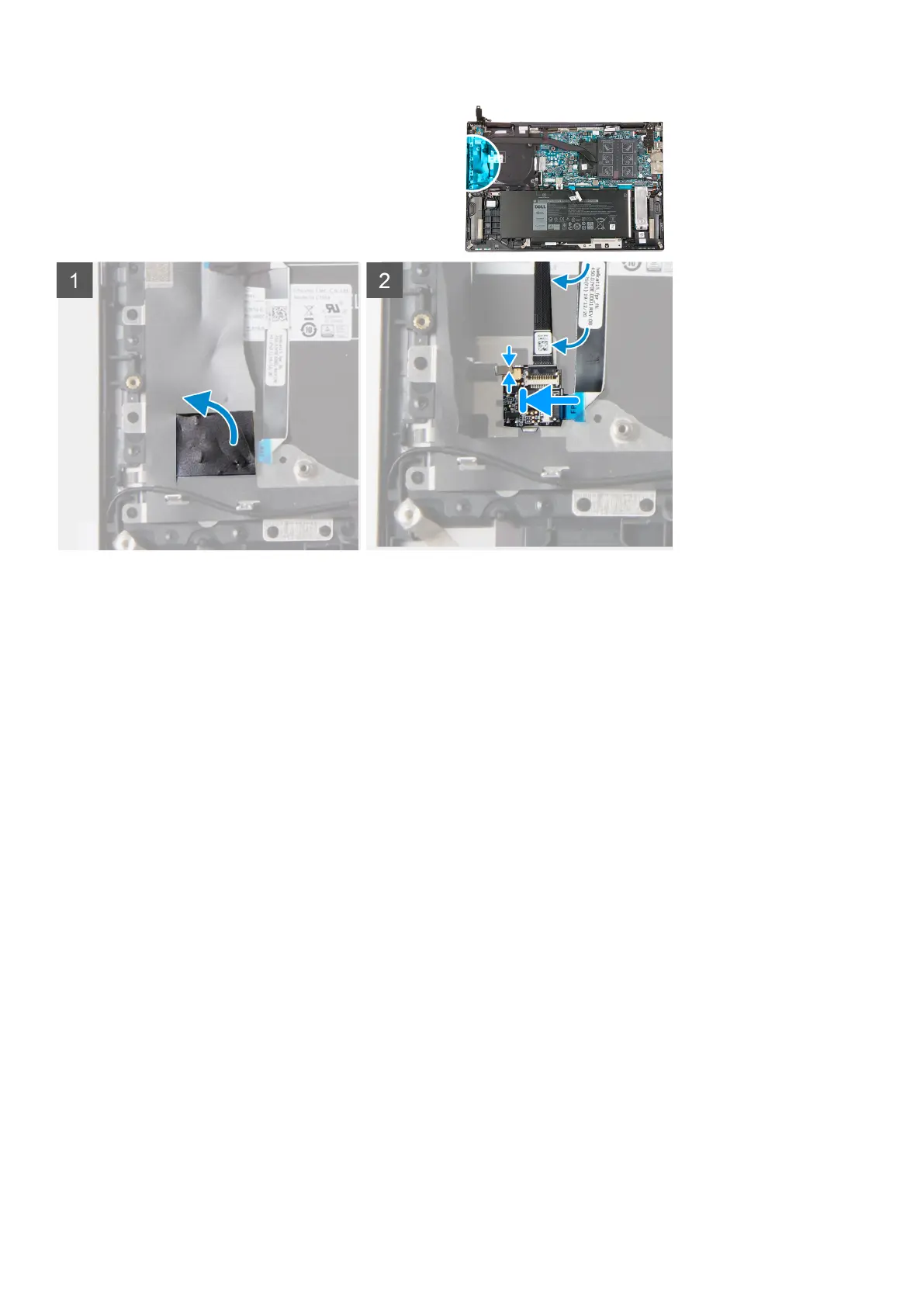

1. Lift the flap to access the fingerprint reader daughter-board slot.
2. Adhere the fingerprint reader-board cable to the palm-rest and keyboard assembly.
3. Align and place the fingerprint reader board, along with its cable, on the slot of the palm-rest and keyboard assembly.
4. Slide the power button board-cable into the connector on the fingerprint reader-board and close the latch to secure the cable.
Next steps
1. Install the I/O board.
2. Install the fan.
3. Install the base cover.
4. Follow the procedure in After working inside your computer.
Display assembly
Removing the display assembly
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following image indicates the location of the display assembly and provides a visual representation of the removal procedure.
