Steps

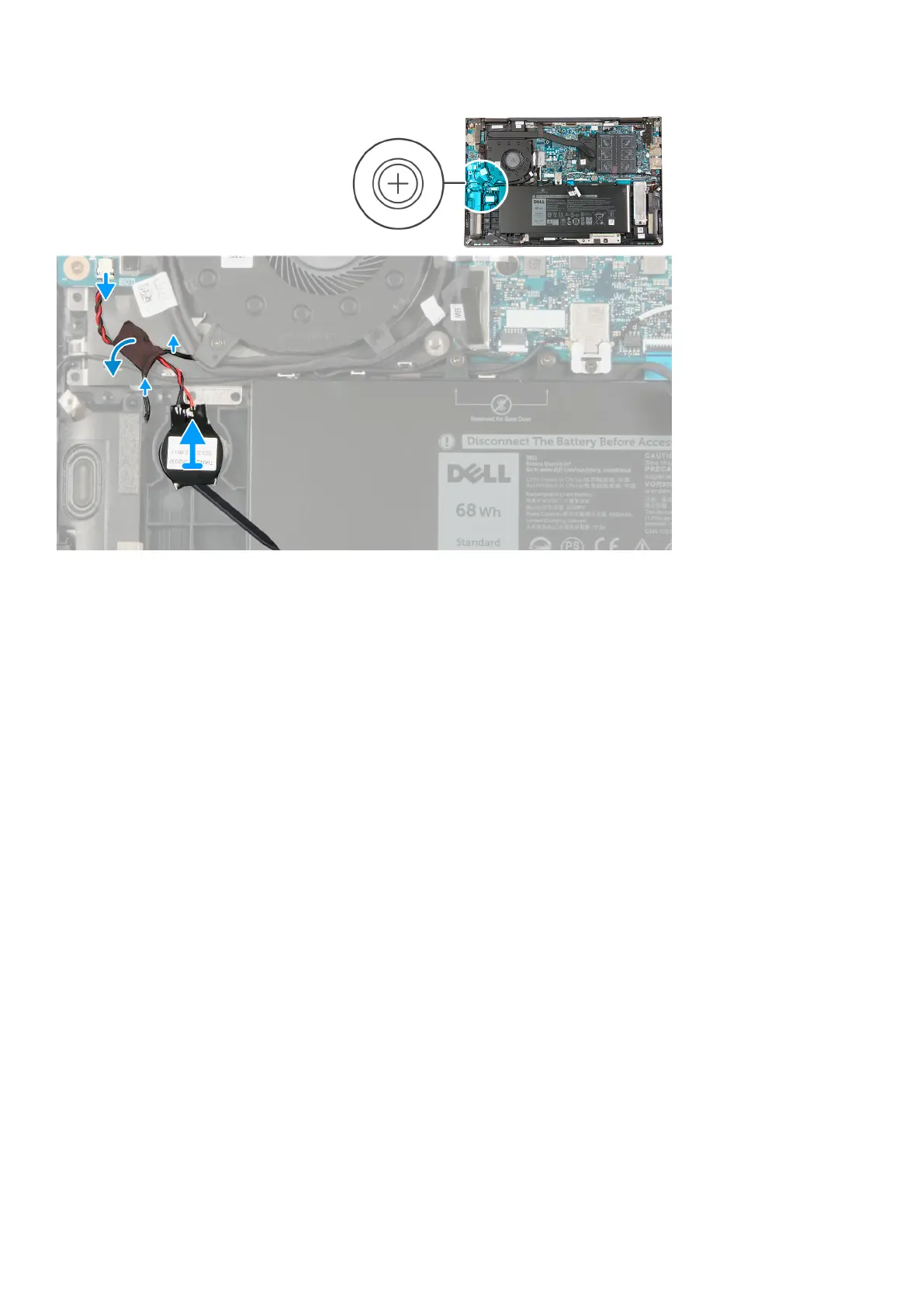

1. Disconnect the coin-cell battery from the I/O board.
2. Peel the tape that secures the speaker cable and coin-cell battery cable to the palm-rest and keyboard assembly.
3. Lift the speaker cable, and using a plastic scribe peel the coin-cell battery off the palm-rest and keyboard assembly.
Installing the coin-cell battery
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the coin-cell battery and provides a visual representation of the installation procedure.
18
Removing and installing components
