Installing the speakers
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

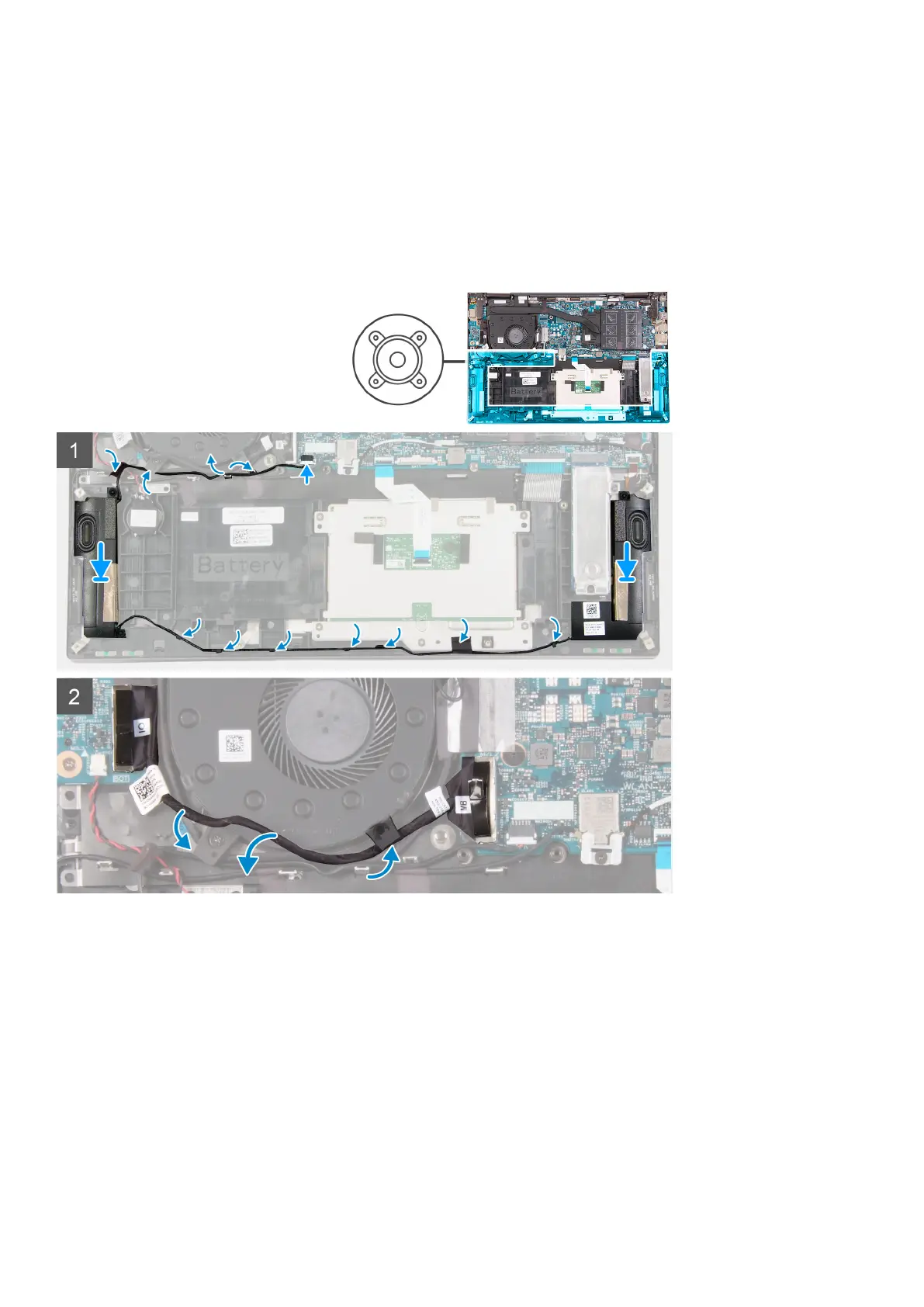

The following image indicates the location of the speakers and provides a visual representation of the installation procedure.
Steps
1. Using the alignment posts and rubber grommets, place the speakers on the slots of the palm-rest and keyboard assembly.
2. Route the speaker cable through the routing guides on the palm-rest and keyboard assembly.
3. Adhere the tape that secures the speaker to the palm-rest and keyboard assembly.
4. Connect the speaker cable to the system board.
5. Route the I/O-board cable through the routing guides on the fan.
Next steps
1. Install the battery.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Removing and installing components
23
