Steps
1. Using the pull tab, disconnect the I/O-board cable from the I/O board.
2. Remove the I/O-board cable from the routing guides on the fan.
3. Open the latch, and disconnect the touchscreen cable from the system board.
4. Peel the tape that secures the touchscreen cable to the heat sink.
5. Remove the touchscreen cable from the routing guides on the fan and palm-rest and keyboard assembly.
6. Open the display at an angle of 90 degrees and place the computer at the edge of a table.
7. Remove the four screws (M2x3.5) that secure the display hinges to the palm-rest and keyboard assembly.
8. Remove the two screws (M2.5x5) that secure the display hinges to the palm-rest and keyboard assembly.
9. Lift the display assembly off the palm-rest and keyboard assembly.
Installing the display assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

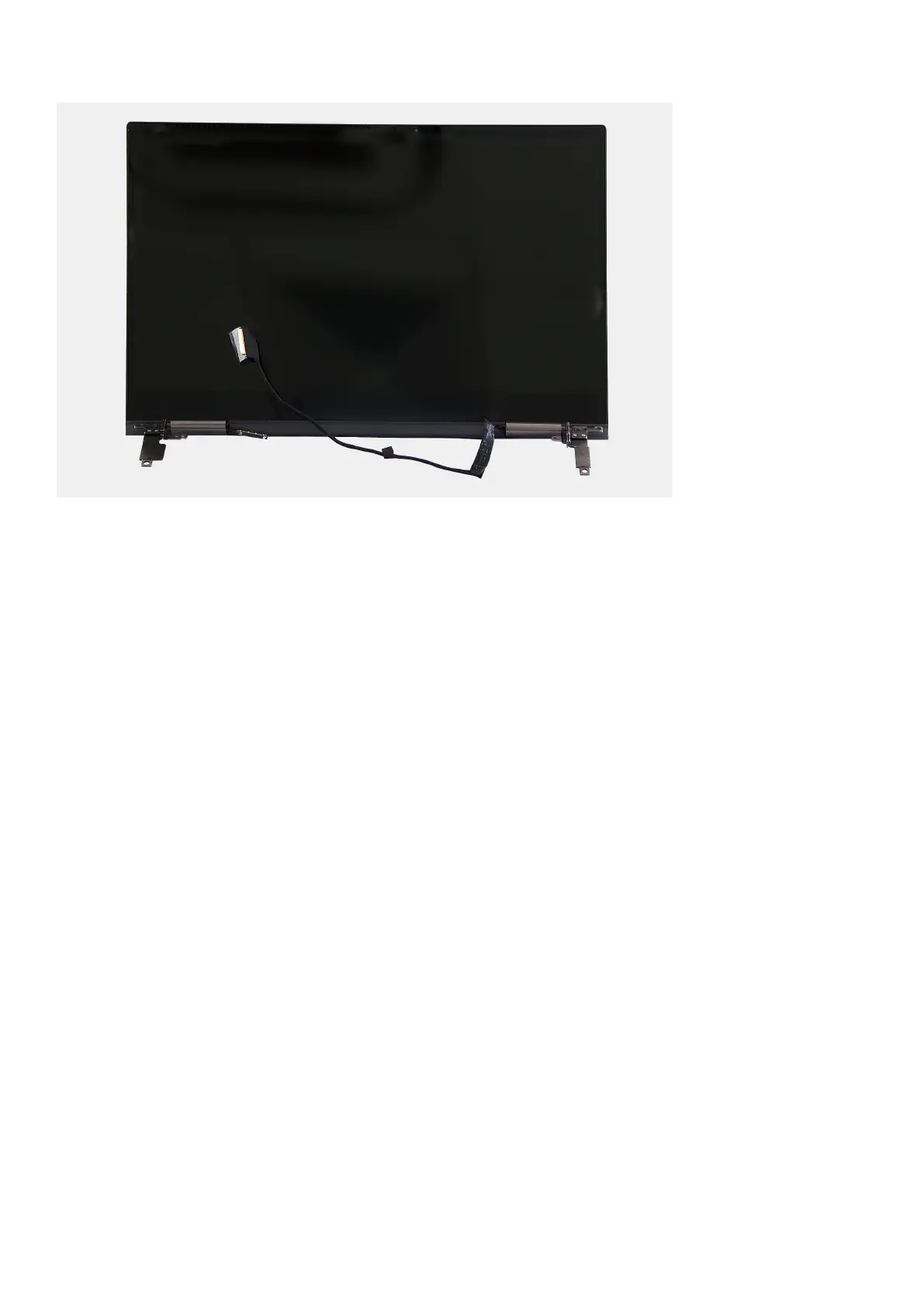

The following image indicates the location of the display assembly and provides a visual representation of the installation procedure.
