Steps

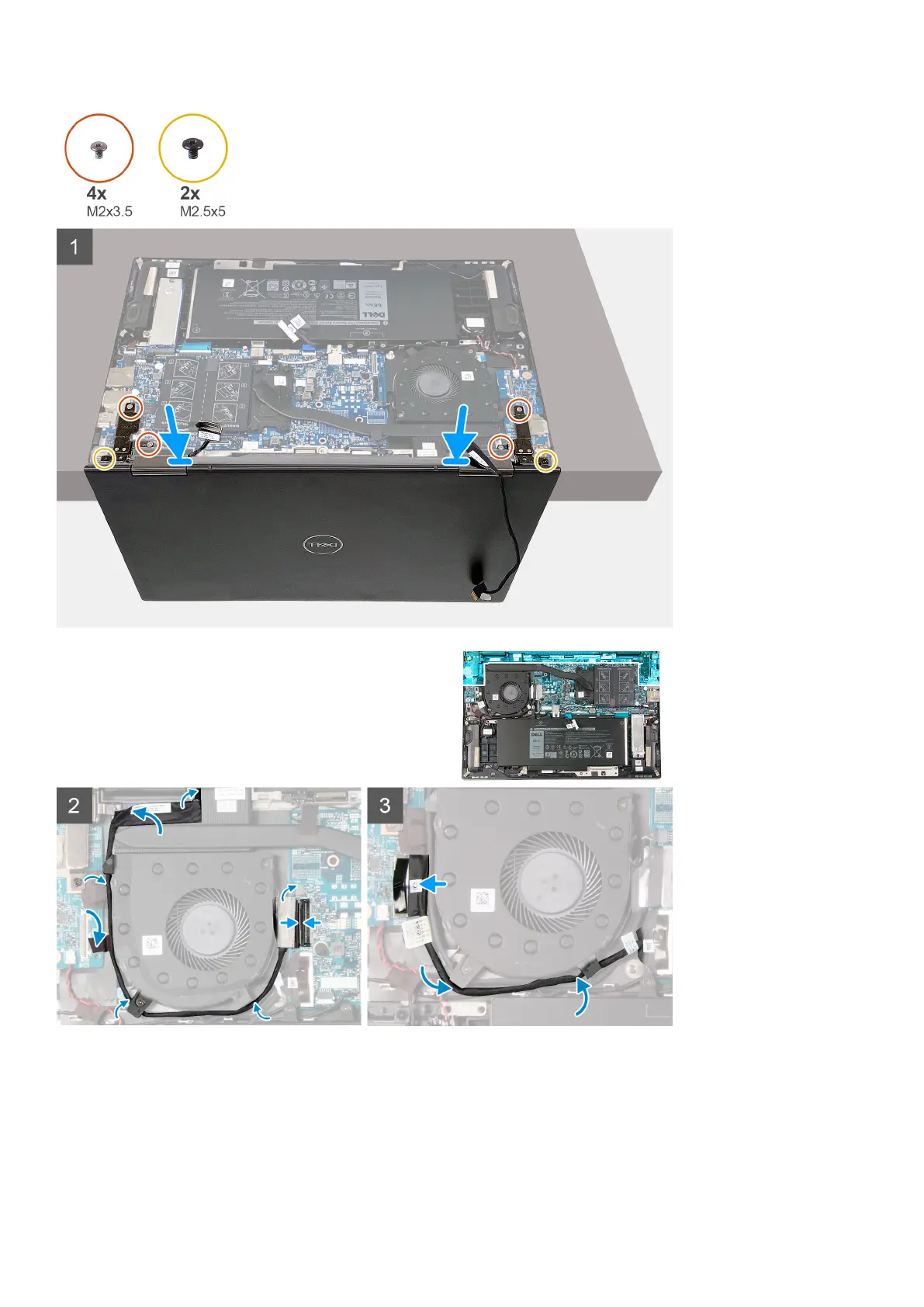

1. Open the hinges to 90 degrees, and place the display assembly on the palm-rest and keyboard assembly.
2. Replace the four screws (M2x3.5) that secure the display hinges to the palm-rest and keyboard assembly.
3. Replace the two screws (M2.5x5) that secure the display hinges to the palm-rest and keyboard assembly.
4. Close the display, and turn the computer over.
5. Route the display cable through the routing guides on the fan and palm-rest and keyboard assembly.
Removing and installing components
47
