Steps

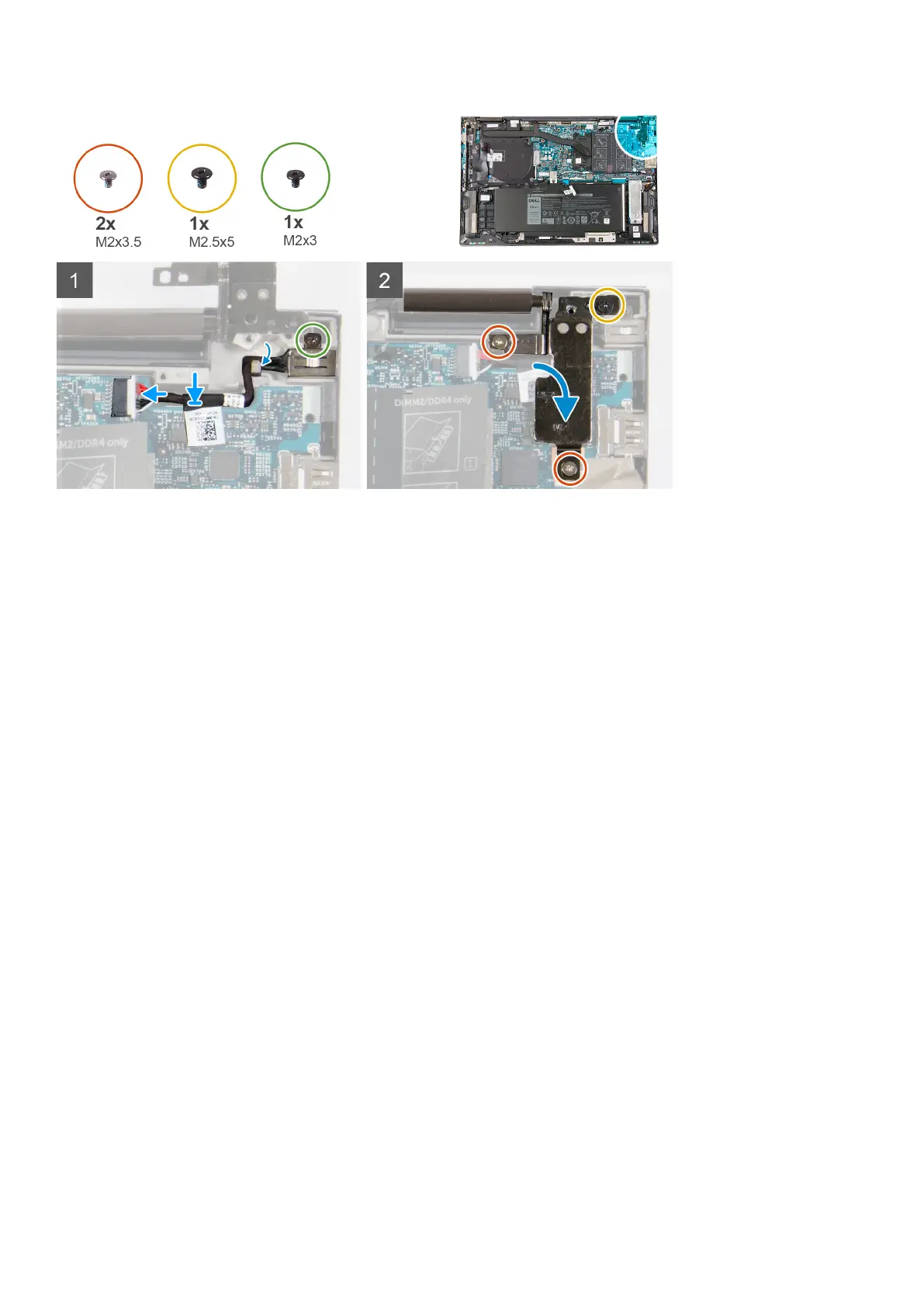

1. Place the power-adapter port, along with its cable, into the slot on the palm-rest and keyboard assembly.
2. Route the power-adapter port cable through the routing guide on the palm-rest and keyboard assembly.
3. Replace the screw (M2x3) that secures the power-adapter port to the palm-rest and keyboard assembly.
4. Connect the power-adapter port cable to the system board.
5. Close the right display hinge.
6. Replace the two screws (M2x3.5) that secure the right display-hinge to the system board and palm-rest and keyboard assembly.
7. Replace the screw (M2.5x5) that secures the right display-hinge to the system board and palm-rest and keyboard assembly.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Touchpad
Removing the touchpad
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
About this task
The following image indicates the location of the touchpad and provides a visual representation of the removal procedure.
Removing and installing components
27
