Steps
1. Lift the flap to access the fingerprint reader-board.
2. Open the latch, and disconnect the power button board-cable from the fingerprint reader-board.
3. Peel the fingerprint reader-board cable from the palm-rest and keyboard assembly.
4. Lift the fingerprint reader daughter-board, along with its cable, off the palm-rest and keyboard assembly.
Installing the fingerprint reader daughter-board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

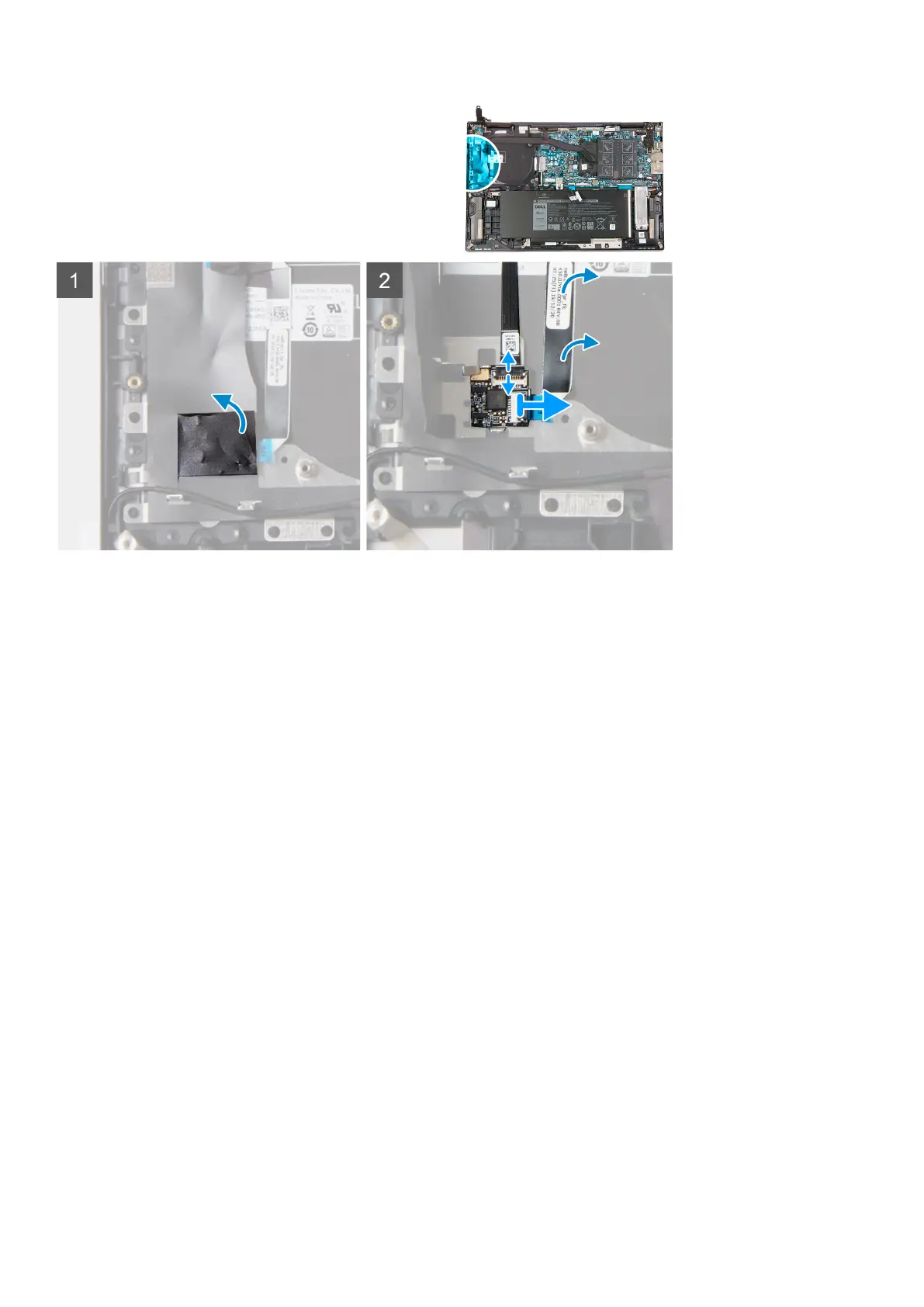

The following image indicates the location of the fingerprint reader daughter-board and provides a visual representation of the installation
procedure.
Removing and installing components
