17. Remove the system board.
About this task
The following image indicates the location of the palm-rest and keyboard assembly and provides a visual representation of the removal
procedure.
Steps

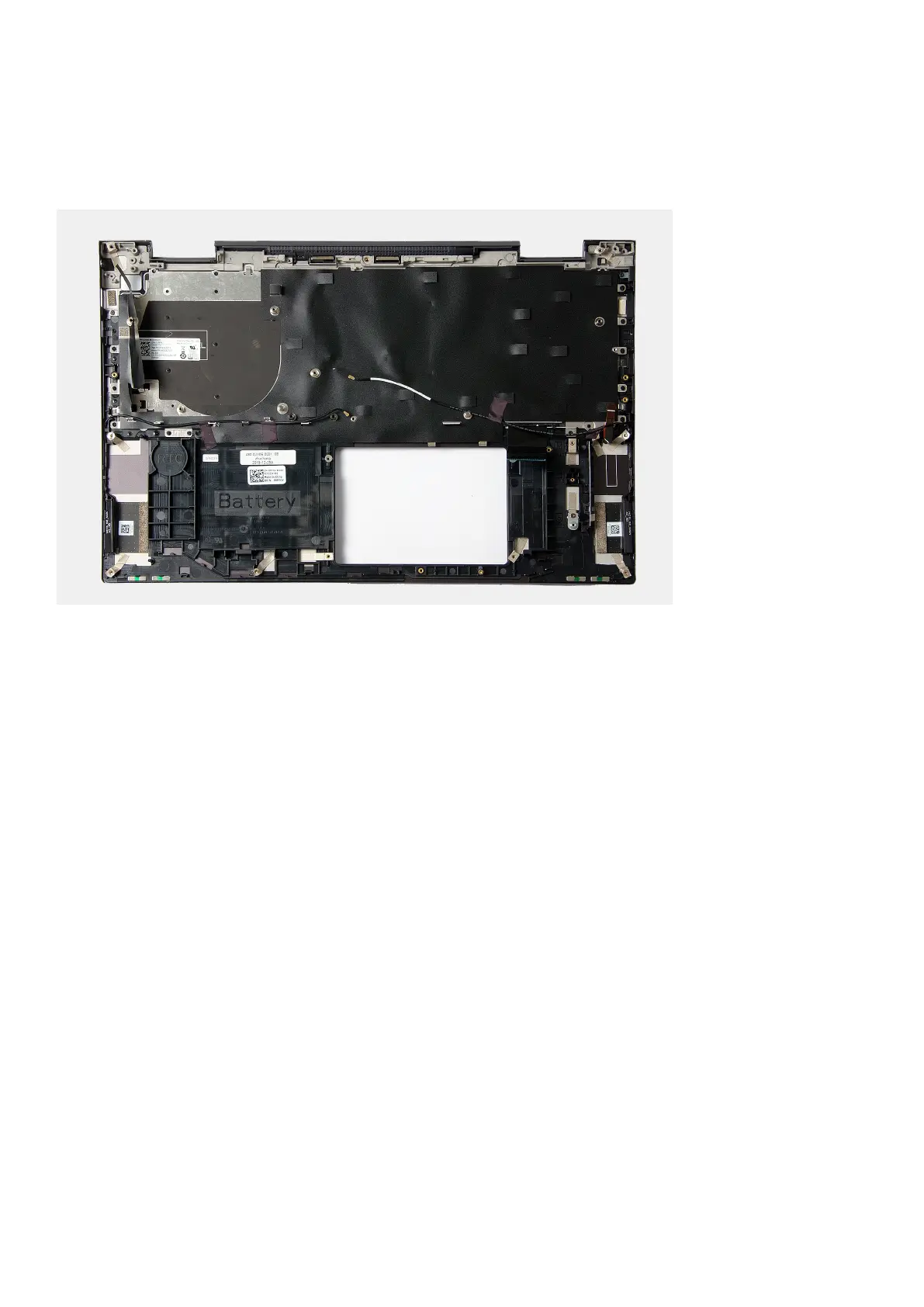

After performing the steps in the pre-requisites, you are left with the palm-rest and keyboard assembly.
Installing the palm-rest and keyboard assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the palm-rest and keyboard assembly and provides a visual representation of the installation
procedure.
56
Removing and installing components
