Steps

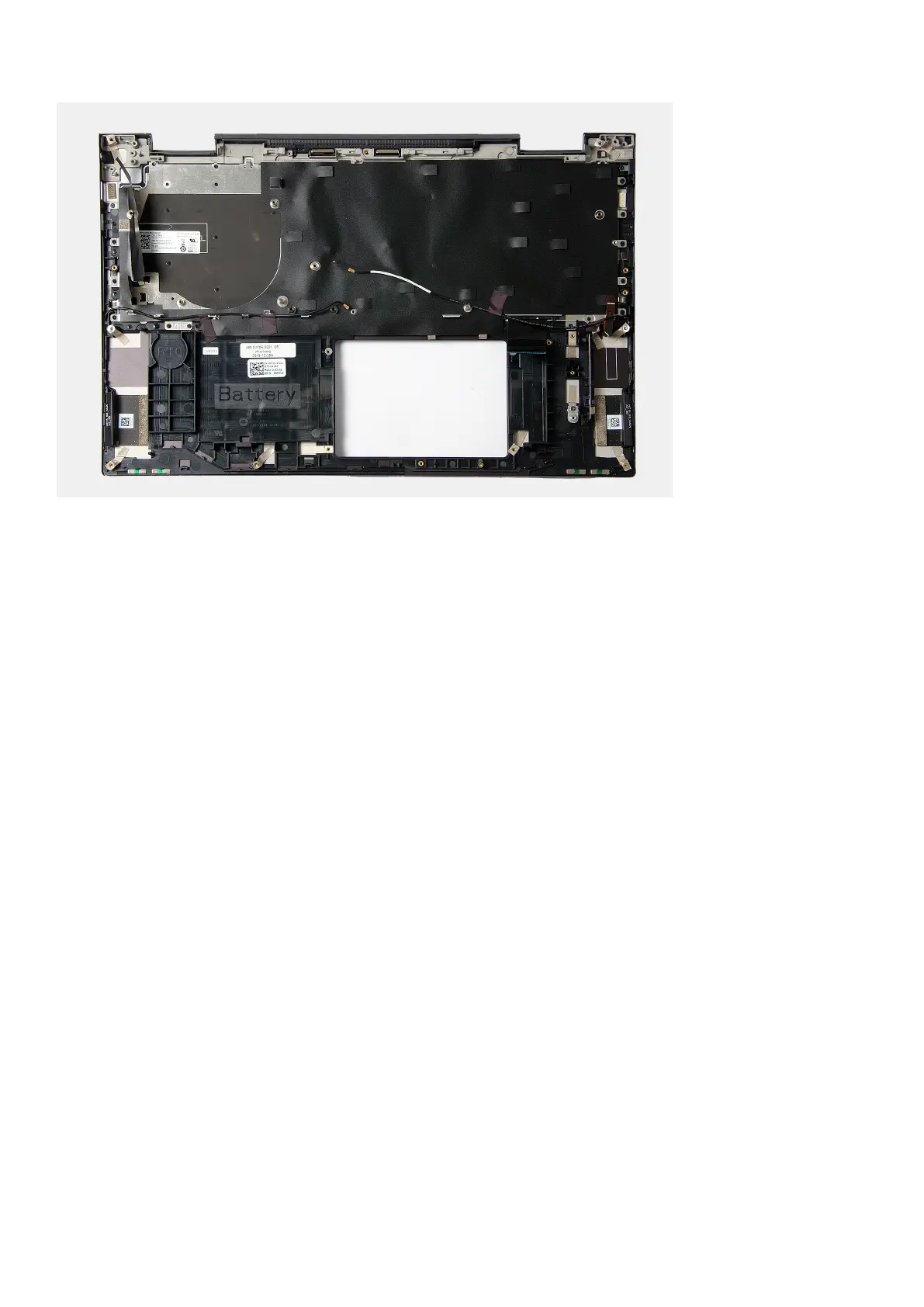

Place the palm-rest and keyboard assembly on a clean and flat surface.
Next steps
1. Install the system board.
2. Install the pen-garage cable.
3. Install the display assembly.
4. Install the fingerprint reader daughter-board.
5. Install the power-button board.
6. Install the touchpad.
7. Install the power-adapter port.
8. Install the fan.
9. Install the heat sink.
10. Install the speakers.
11. Install the I/O board.
12. Install the M.2 2230 solid-state drive or M.2 2280 solid-state drive, as applicable.
13. Install the memory modules.
14. Install the coin-cell battery.
15. Install the battery.
16. Install the base cover.
17. Follow the procedure in After working inside your computer.
Removing and installing components
57
