Dell P97F Service Manual

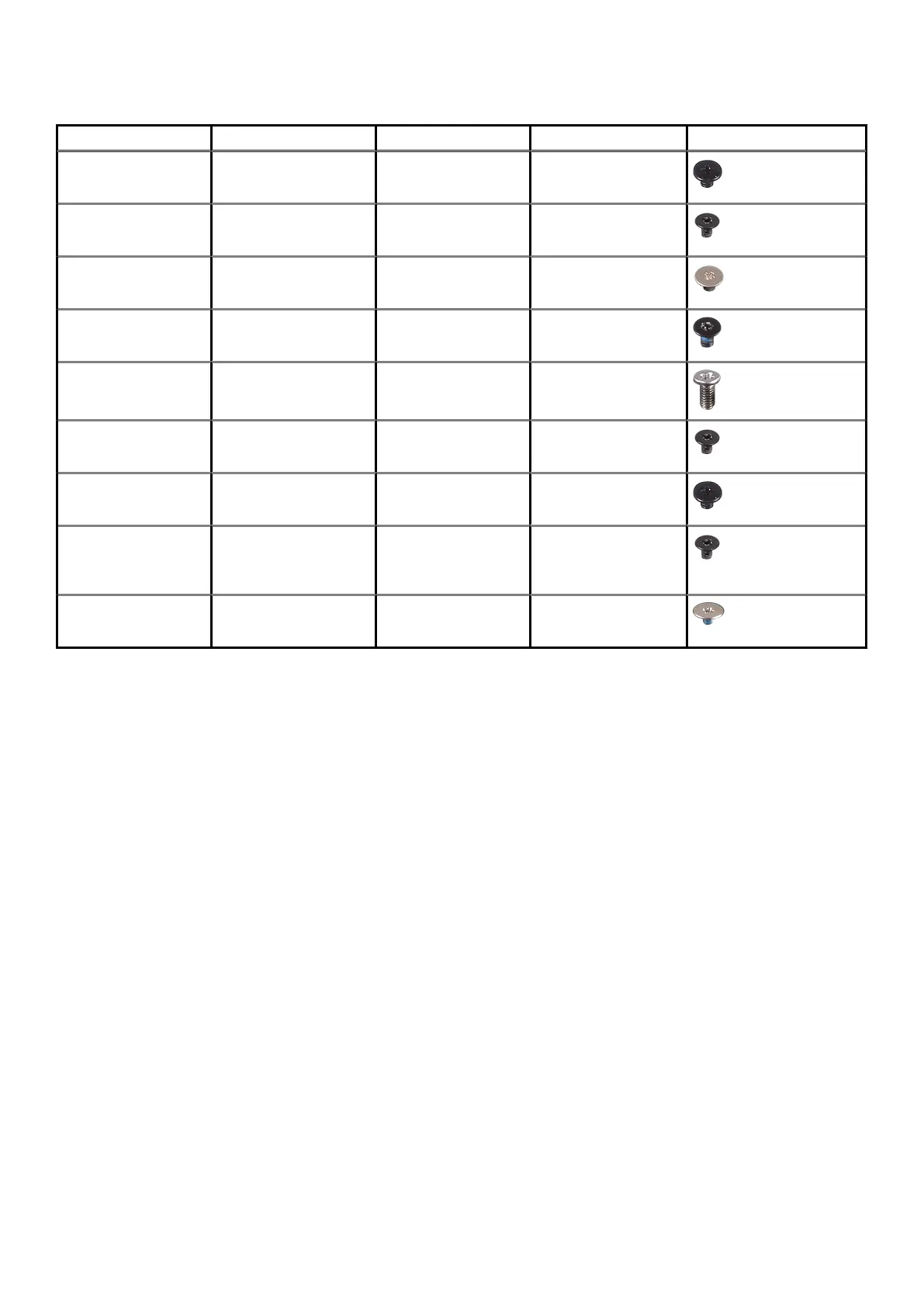

Table 1. Screw list (continued)
Component Secured to Screw type Quantity Screw image
Pen-garage cable Palm-rest and keyboard
assembly
M1.6x2.5 1
I/O board Palm-rest and keyboard
assembly
M2x3 2
Fan Palm-rest and keyboard
assembly
M2x2 2
Display hinges Palm-rest and keyboard
assembly
M2x3.5 4
Display hinges Palm-rest and keyboard
assembly
M2.5x5 2
Power-adapter port Palm-rest and keyboard
assembly
M2x3 1
Power-button bracket Palm-rest and keyboard
assembly
M1.6x2.5 2
USB Type-C bracket System board and palm-
rest and keyboard
assembly
M2x3 2
System board Palm-rest and keyboard
assembly
M2x2 2
Major components of Inspiron 7500 2n1 Black
The following image shows the major components of Inspiron 7500 2n1 Black.
Removing and installing components
9
