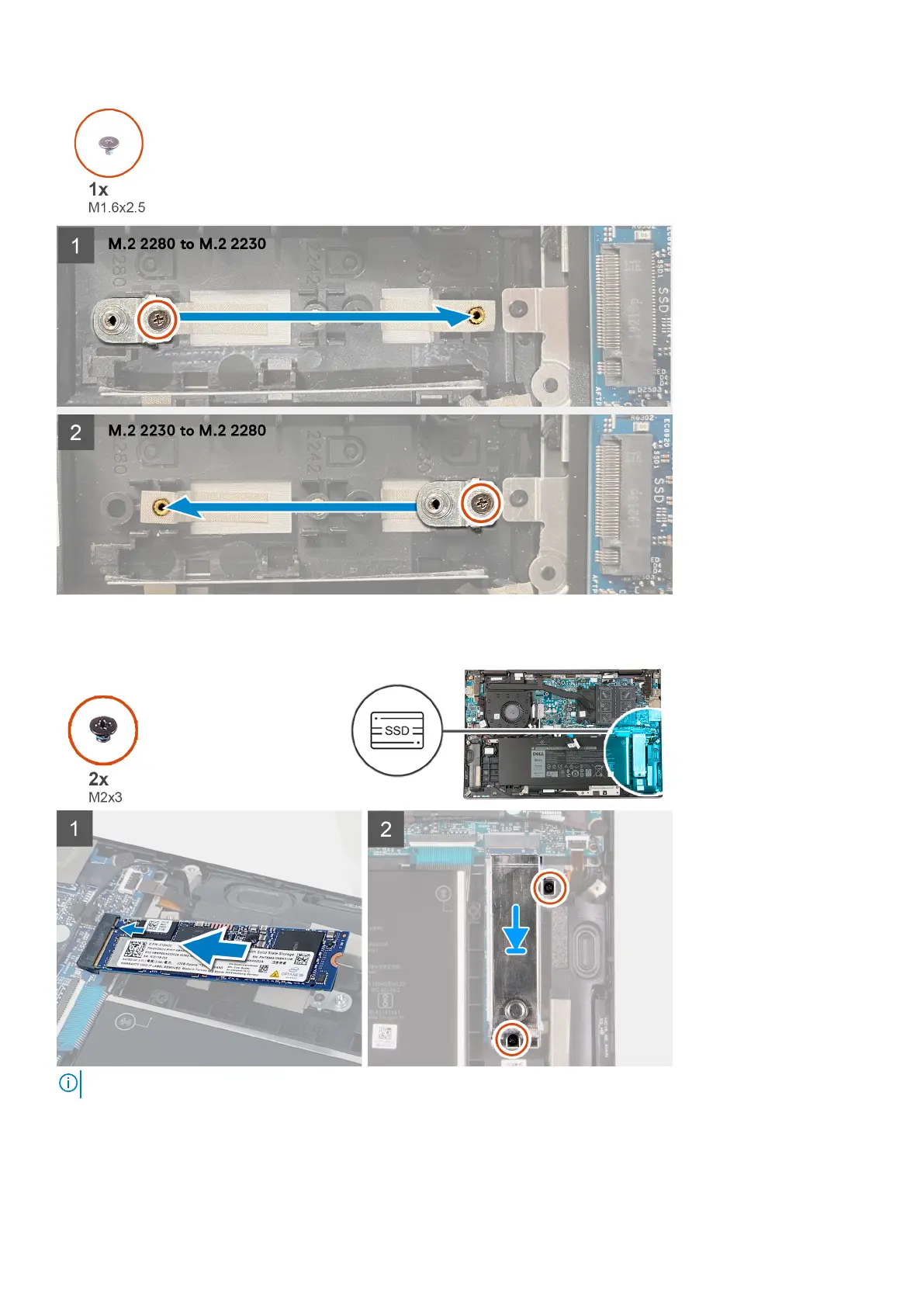

The following image indicates the location of the M.2 2280 solid-state drive and provides a visual representation of the installation
procedure.
NOTE: Perform step 1 to step 3 if you are replacing the M.2 2280 solid-state drive with an M.2 2230 solid-state drive.
Steps
1. Remove the screw (M1.6x2.5) that secures the solid-state drive bracket to the palm-rest and keyboard assembly.
2. Shift the solid-state drive bracket to the other side of the solid-state drive slot.
36
Removing and installing components
