6. Disconnect the cables from the rear drive module.
NOTE: Refer Cable routing topic for more information.
Steps
1. Using a Phillips #2 screwdriver, loosen the captive screws that secure the rear drive module to the system.
2. Lift the rear drive module from the system.

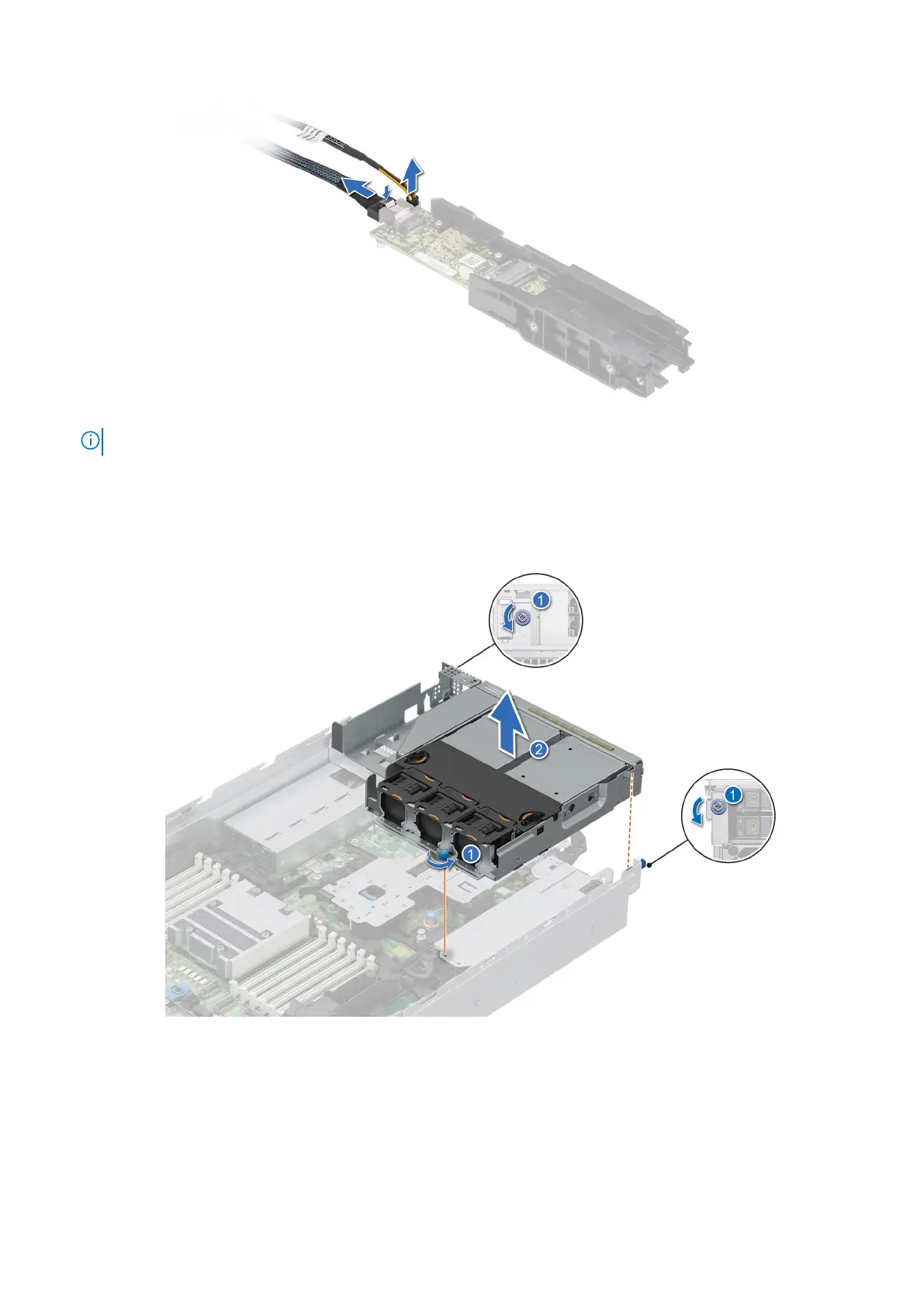

Figure 57. Removing the 4 x 2.5-inch rear drive module
Next steps
1. Replace the 4 x 2.5-inch rear drive module.
100
