Next steps
1. Replace the BOSS-N1 card carrier blank.
Installing the BOSS-N1 card carrier blank
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
Steps
Align the blank with the BOSS-N1 module bay and push it into the bay until it clicks into place.

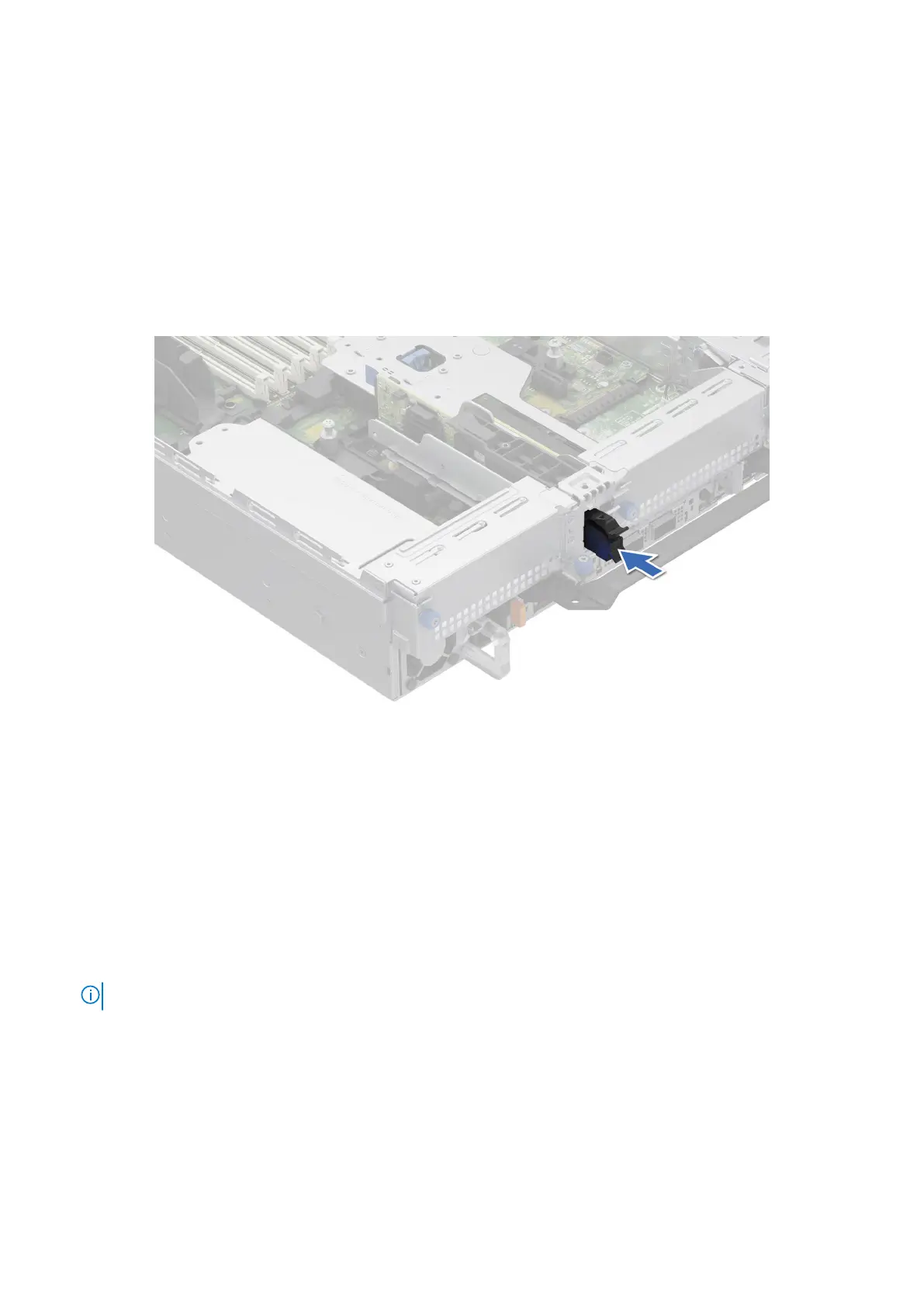

Figure 180. Installing the BOSS-N1 card carrier blank
Removing the BOSS-N1 module
The procedure to remove is the BOSS-N1 module with 4 x 2.5-inch rear drive module is similar.
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
Steps
1.
NOTE: The numbers on the image do not depict the exact steps. The numbers are for representation of sequence.
Pull and lift the BOSS-N1 card carrier retention latch lock to open.
2. Slide the BOSS-N1 card carrier out.
228
Installing and removing system components
