Removing a power supply unit adapter blank
Remove the PSU adapter, when installing PSU with 86 mm wide form factor.
Prerequisites
Follow the safety guidelines listed in the Safety instructions.
Steps
Using a Phillips #1 screwdriver, loosen the screw and remove the power supply unit adapter blank.

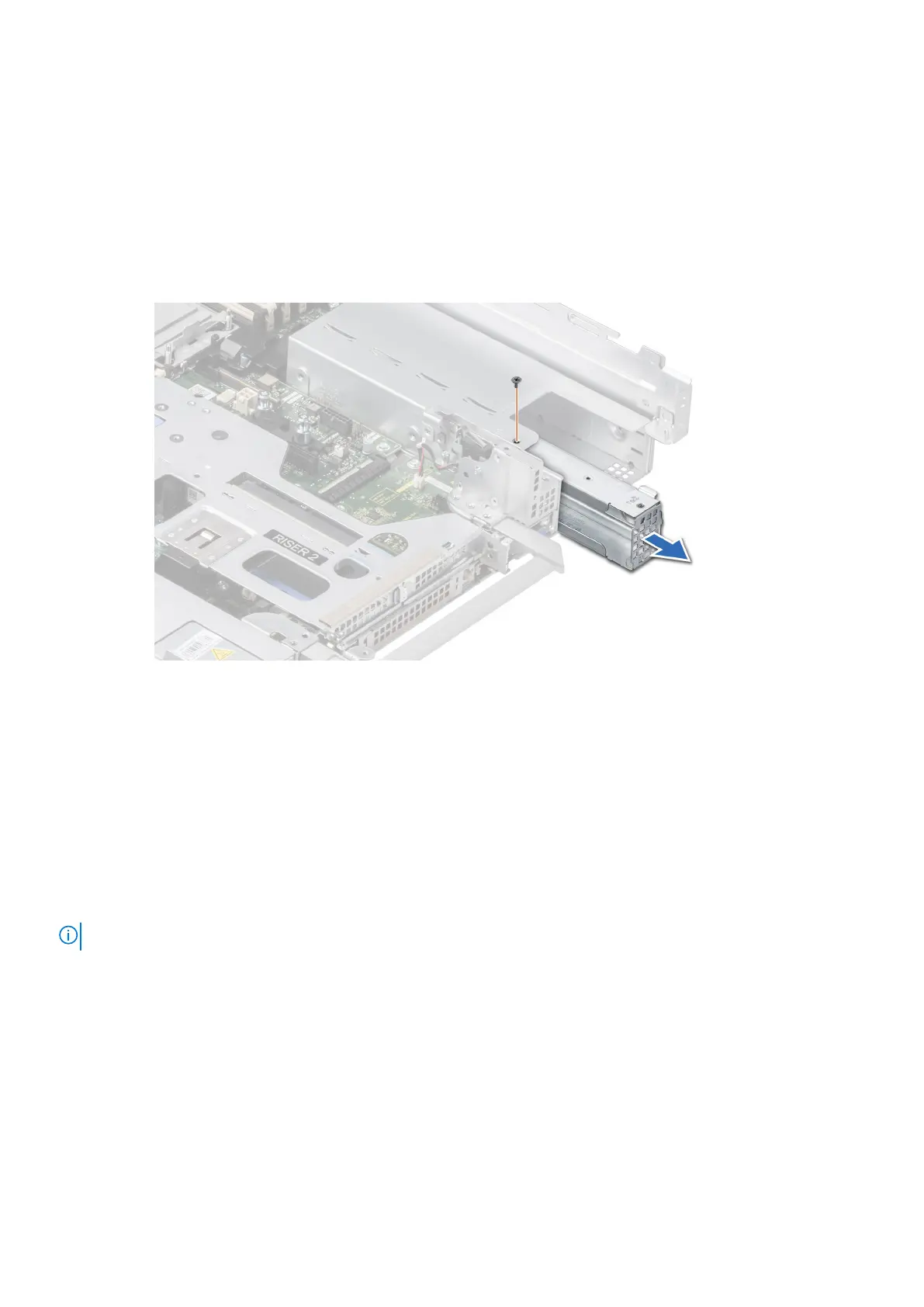

Figure 201. Removing a power supply unit adapter blank
Next steps
1. Replace the PSU adapter or Install the PSU.
Installing a power supply unit adapter blank
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. If required, Remove the PSU.
NOTE: Remove the PSU adapter, when installing PSU with 86 mm wide form factor.
Steps
1. Align and insert the power supply unit adapter blank.
2. Using a phillips #1 screwdriver, tighten the screw.
244
Installing and removing system components
