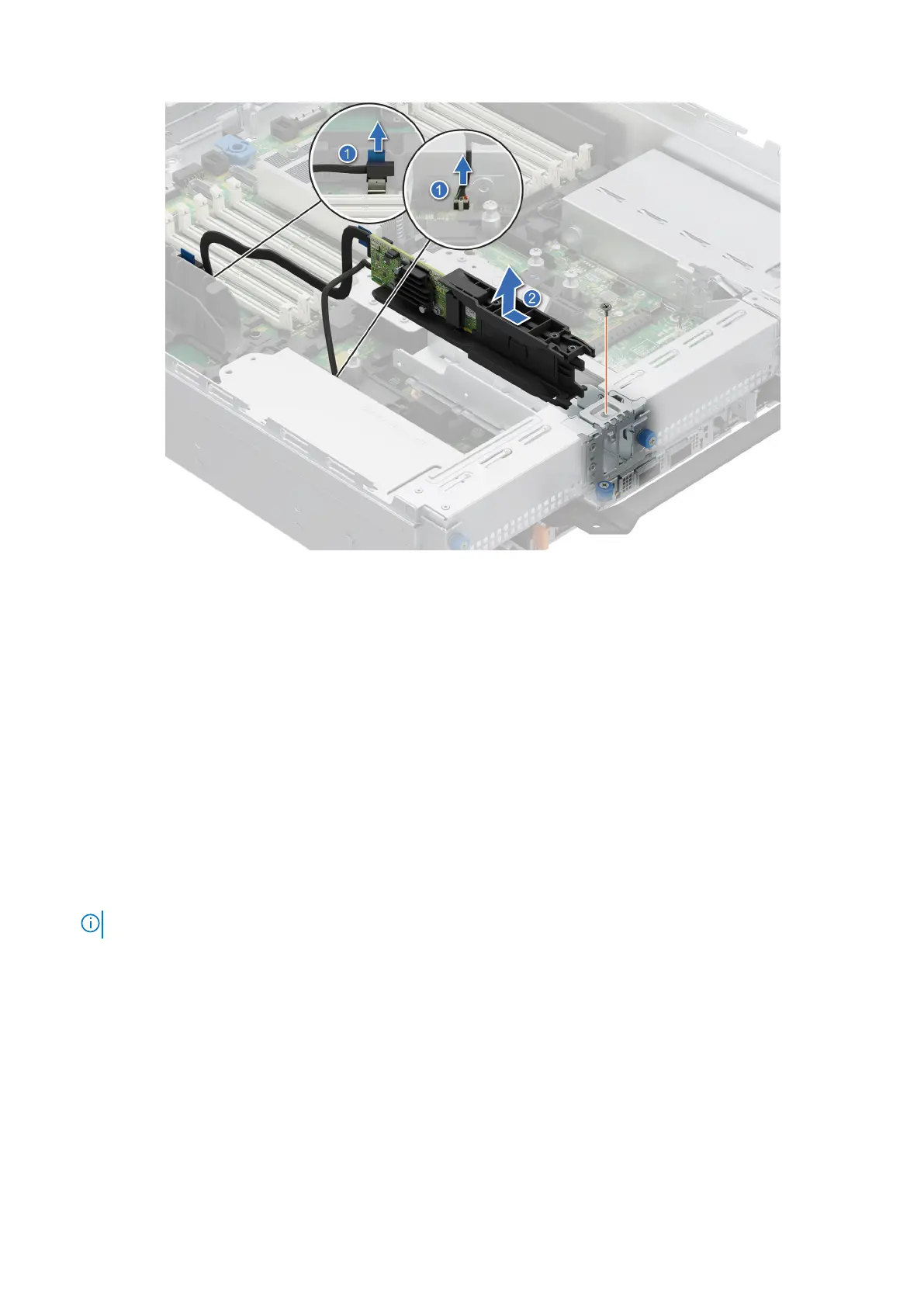

Figure 183. Removing the BOSS-N1 module
Next steps
1. Replace the BOSS-N1 module or Install the BOSS-N1 module blank.
Installing the BOSS-N1 module
The procedure to install is the BOSS-N1 module with 4 x 2.5-inch rear drive module is similar.
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. If installed, remove the BOSS module blank.
Steps
1.
NOTE: The numbers on the image do not depict the exact steps. The numbers are for representation of sequence.
Align the BOSS-N1 module at an angle with the controller card module slot.
2. Insert the BOSS-N1 module and push the module horizontally towards the rear of the system until it is firmly seated.
3. Using the Phillips #1 screwdriver, secure the BOSS-N1 module with the M3 x 0.5 x 4.5 mm screw.
4. Connect the BOSS-N1 power and signal cable to the connectors on the system board.
230
Installing and removing system components
