NOTE: The numbers on the image do not depict the exact steps. The numbers are for representation of sequence.

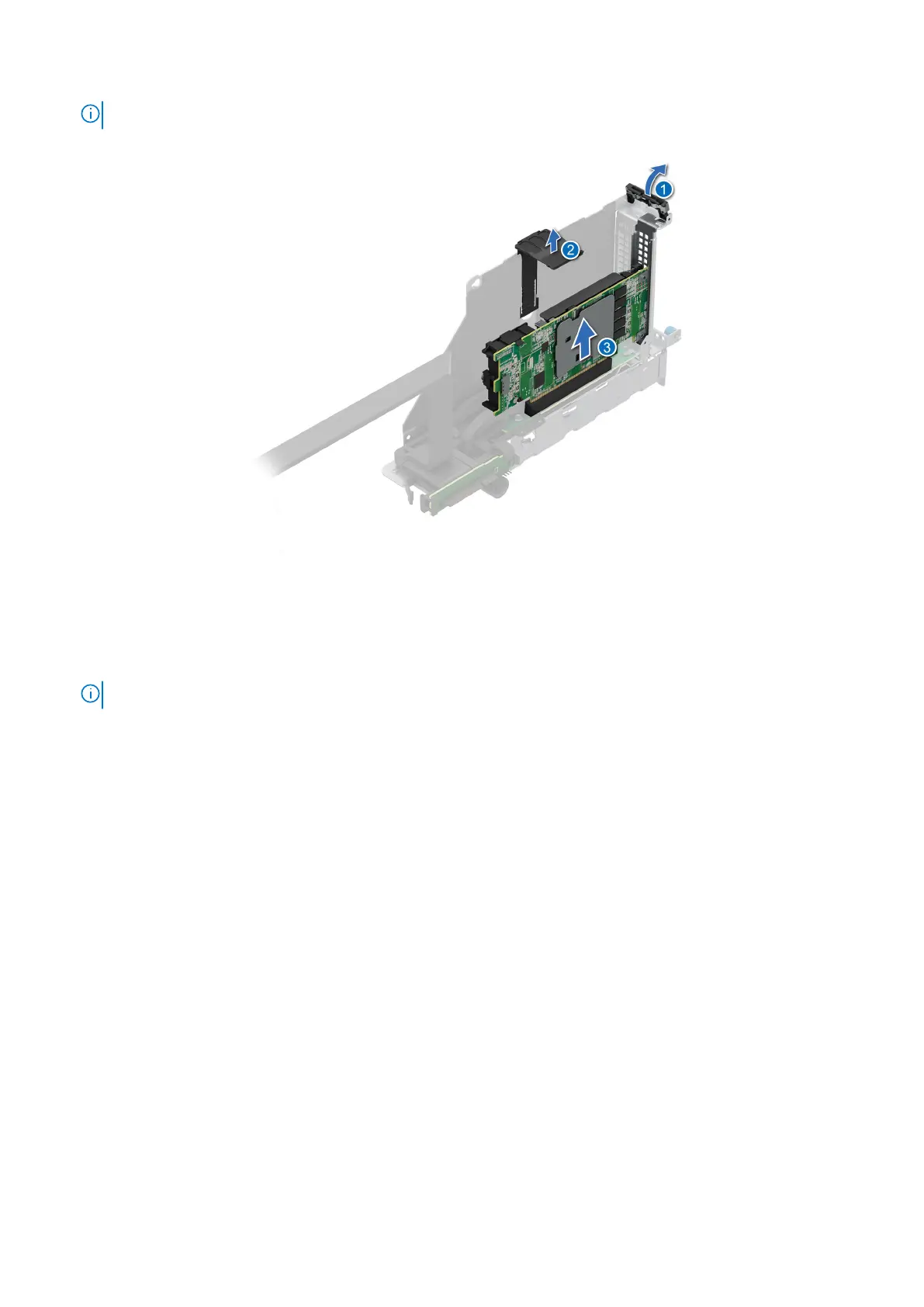

Figure 105. Installing the Adapter PERC module
Next steps
1. Connect the cables to the Adapter PERC module and route the cables properly.
NOTE: Refer Cable routing topic for more information.
2. Install the cooling fan cage assembly.
3. If removed, install the air shroud or install the GPU air shroud.
4. Install the drive backplane cover.
5. Install the expansion card riser.
6. Follow the procedure listed in After working inside your system.
Rear drive cage
Removing the rear drive cage
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the drives.
4. Remove the air shroud.
Steps
1. Using a Phillips #2 screwdriver, loosen the captive screws that secure the rear drive cage to the system.
2. Slide the rear drive cage towards the front of the system to disengage it from the system.
3. Remove the rear drive cage from the system.
142
Installing and removing system components
