Installing the side wall bracket
There are two side wall brackets on either side of the system. The procedure to install is similar.
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. If installed, remove the air shroud.
4. Remove the cooling fan cage assembly.
NOTE: Ensure that you note the routing of the cables as you remove them from the system board. Route the cables
properly when you replace them to prevent the cables from being pinched or crimped.
Steps
1. Align the guide slots on the side wall bracket with the guides on the system and slide until the cover is seated firmly.
NOTE: Route the cables through the side wall cable holder.
2. Close the side wall cable holder until the holder clicks into place.

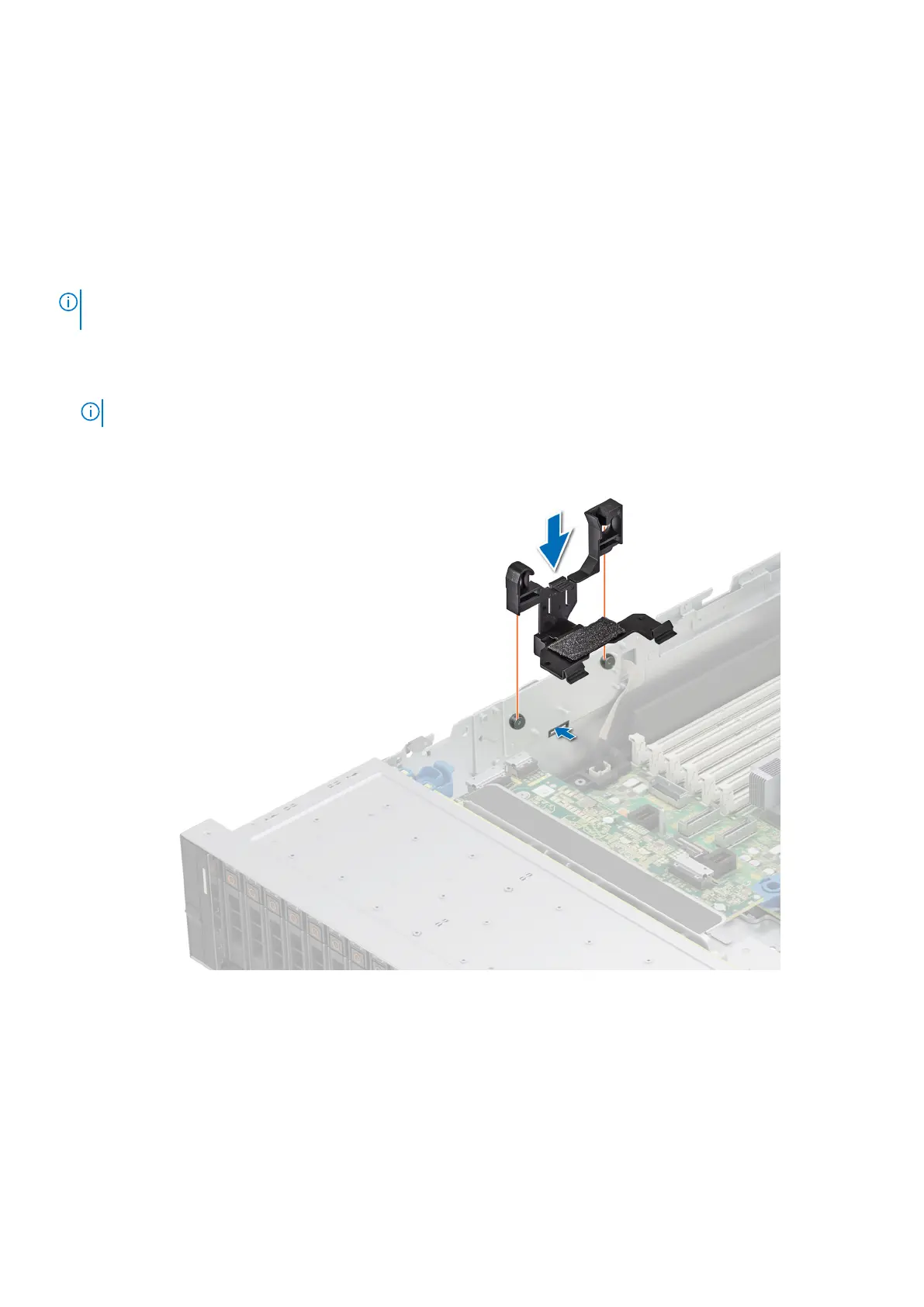

Figure 70. Installing the side wall bracket
Next steps
1. Replace the cooling fan cage assembly.
2. If removed, install the air shroud.
3. Follow the procedure listed in the After working inside your system.
108
Installing and removing system components
