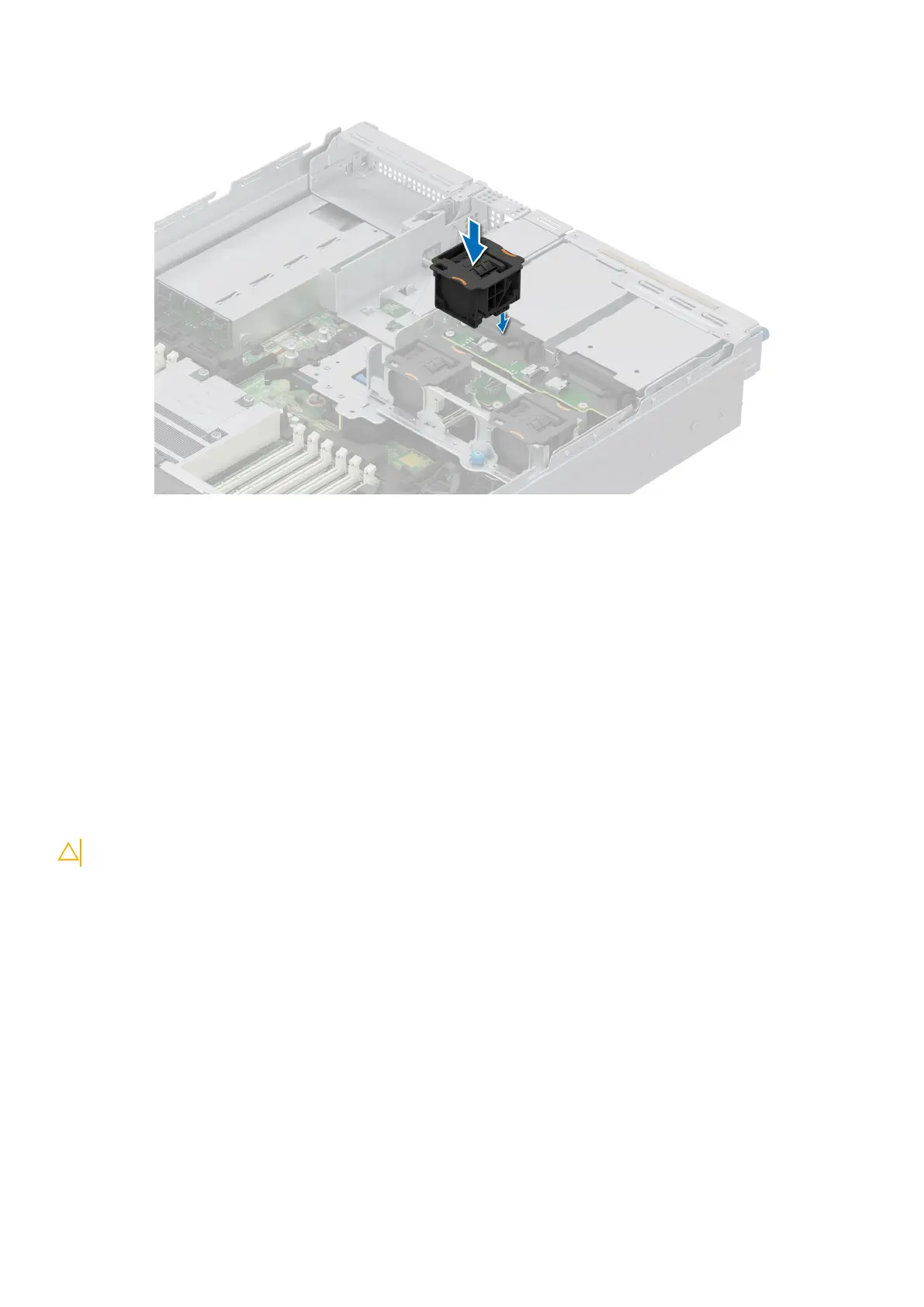

Figure 48. Installing a 4 x 2.5-inch rear drive module cooling fan
Next steps
1. Install the 4 x 2.5-inch rear drive module air shroud.
2. Follow the procedure listed in After working inside your system.
Drives
Removing a drive blank
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. If installed, remove the front bezel.
CAUTION: To maintain proper system cooling, drive blanks must be installed in all empty drive slots.
Steps
Press the release button, and slide the drive blank out of the drive slot.
92
Installing and removing system components
