Dell PowerEdge R7615 - Page 140

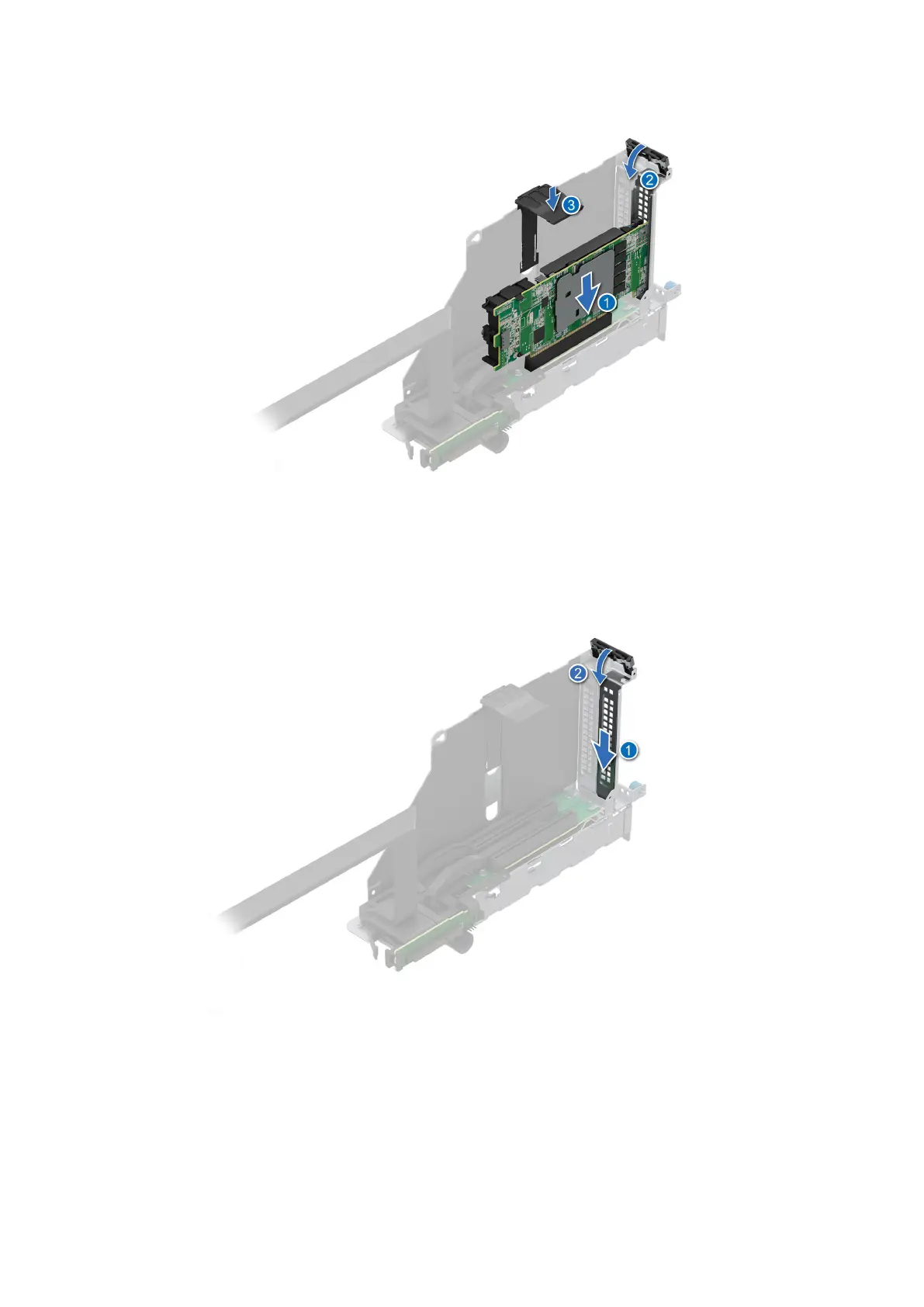

Figure 102. Removing the Adapter PERC module
4. If the Adapter PERC module is not going to be replaced, install a filler bracket and close the card retention latch.
Figure 103. Installing the filler bracket
Next steps
1. Replace the Adapter PERC module.
140
Installing and removing system components
