NOTE: To enable the BOSS-N1 module in the system, ensure that the BIOS firmware version is 1.5.5 and iDRAC firmware
version is 4.30.30.30 or later.
Before you begin the installation or removal process, follow the safety guidelines and before working inside the system
instructions.
Table 112. BOSS-N1 module kit components
R760 (quantity) Components in kit
NA BOSS cover
1 M3 x 0.05 x 4.5 mm screws
1 BOSS signal cable
1 BOSS power cable
1 BOSS-N1 module
1 or 2 BOSS-N1 card carrier
1 or 2 M.2 SSD
2 M.2 240 GB information label
2 M.2 480 GB information label
1 BOSS card filler
1 Tech sheet
To remove the BOSS blank :
1. Power off the system and remove the system cover.
2. Use a screwdriver to push out the blank from the BOSS-N1 module bay.

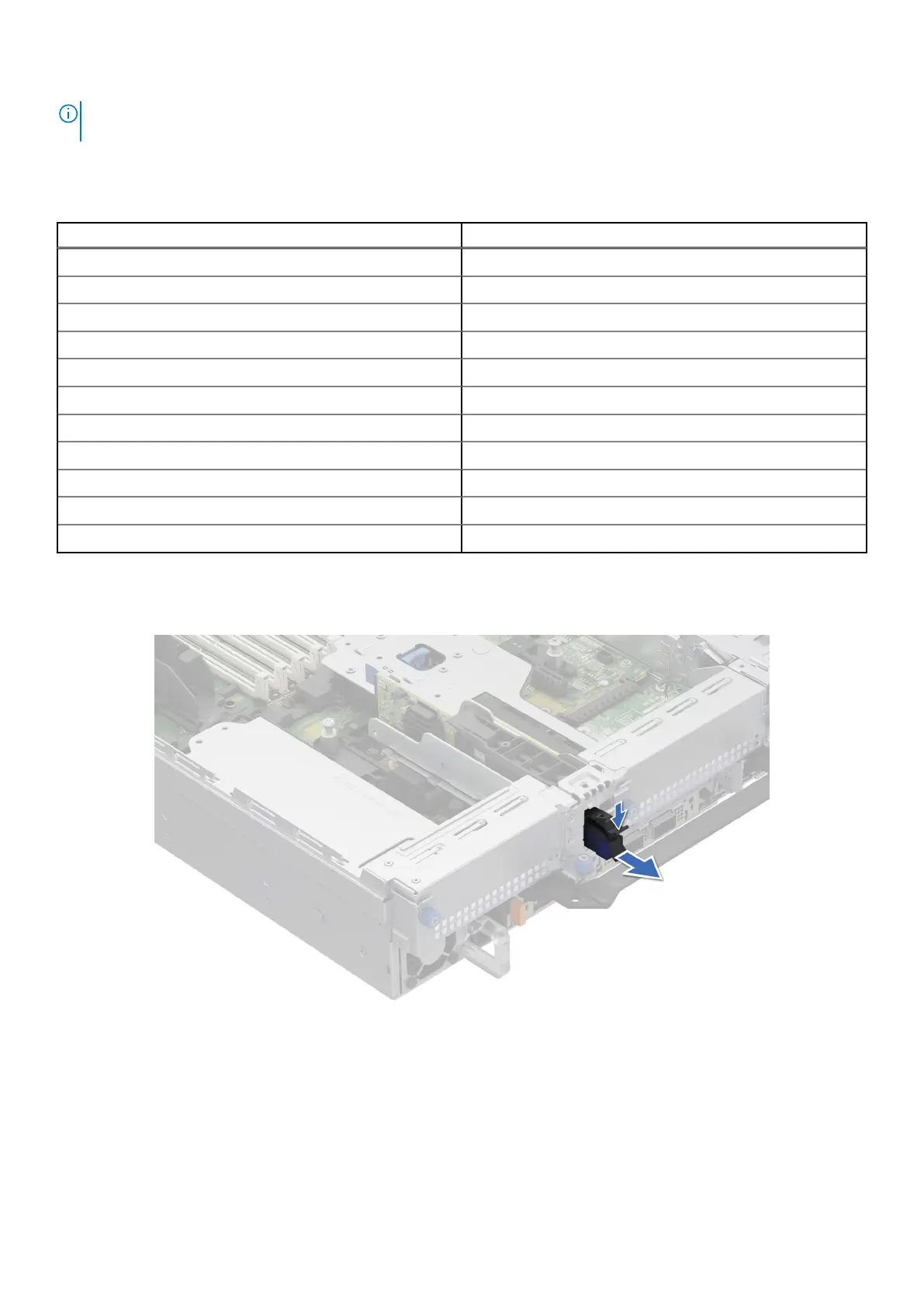

Figure 216. Removing the BOSS-N1 module blank
To install the BOSS blank:
1. Align the blank with the BOSS-N1 module bay and push it into the bay until it clicks into place.
Upgrade Kits
261
