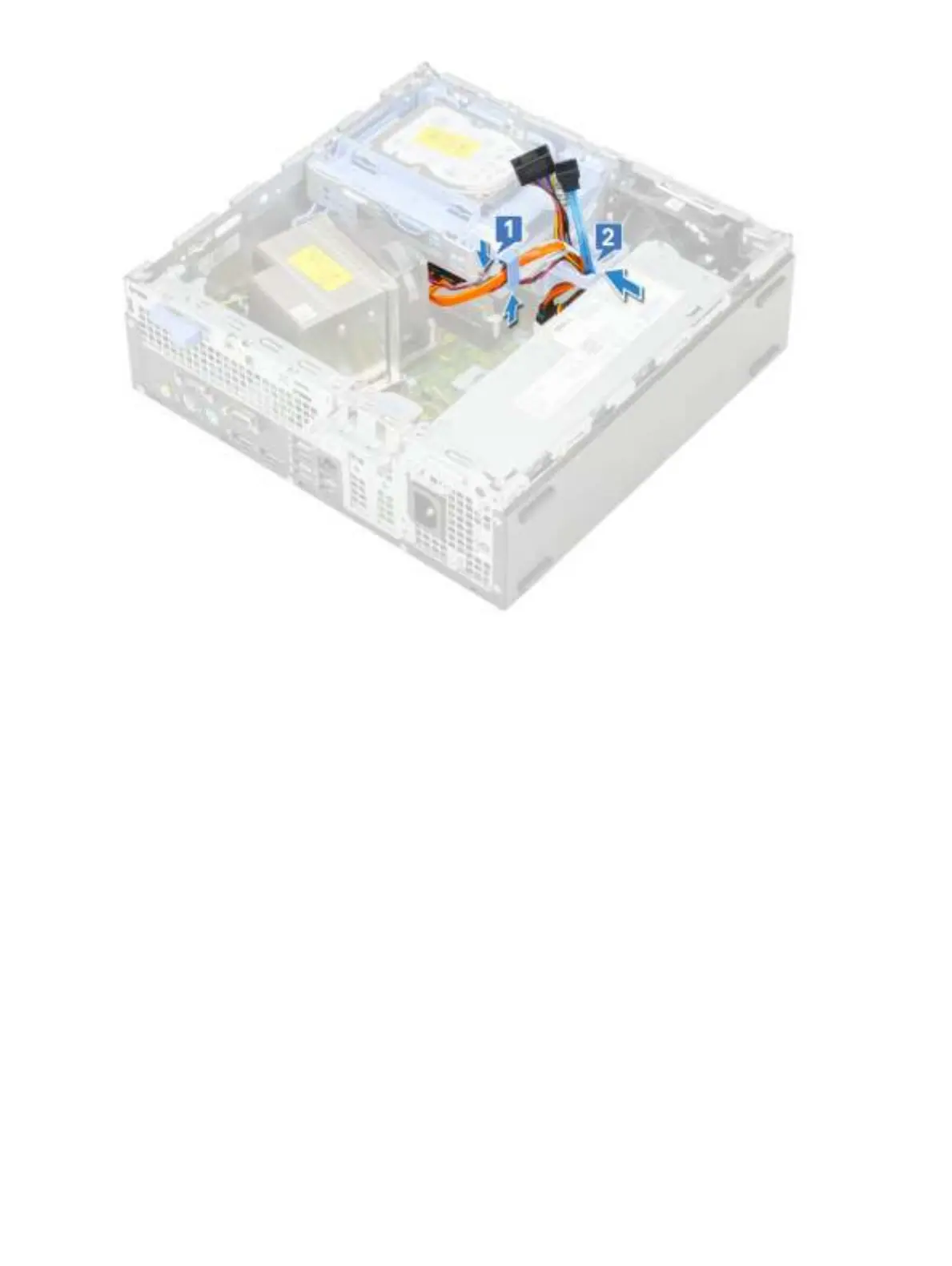

f Slide the release tab to lock the module [1].

g Connect the hard drive data cable and power cable from the connectors on the hard drive [2, 3].

Installing the USB Type-C card 101
