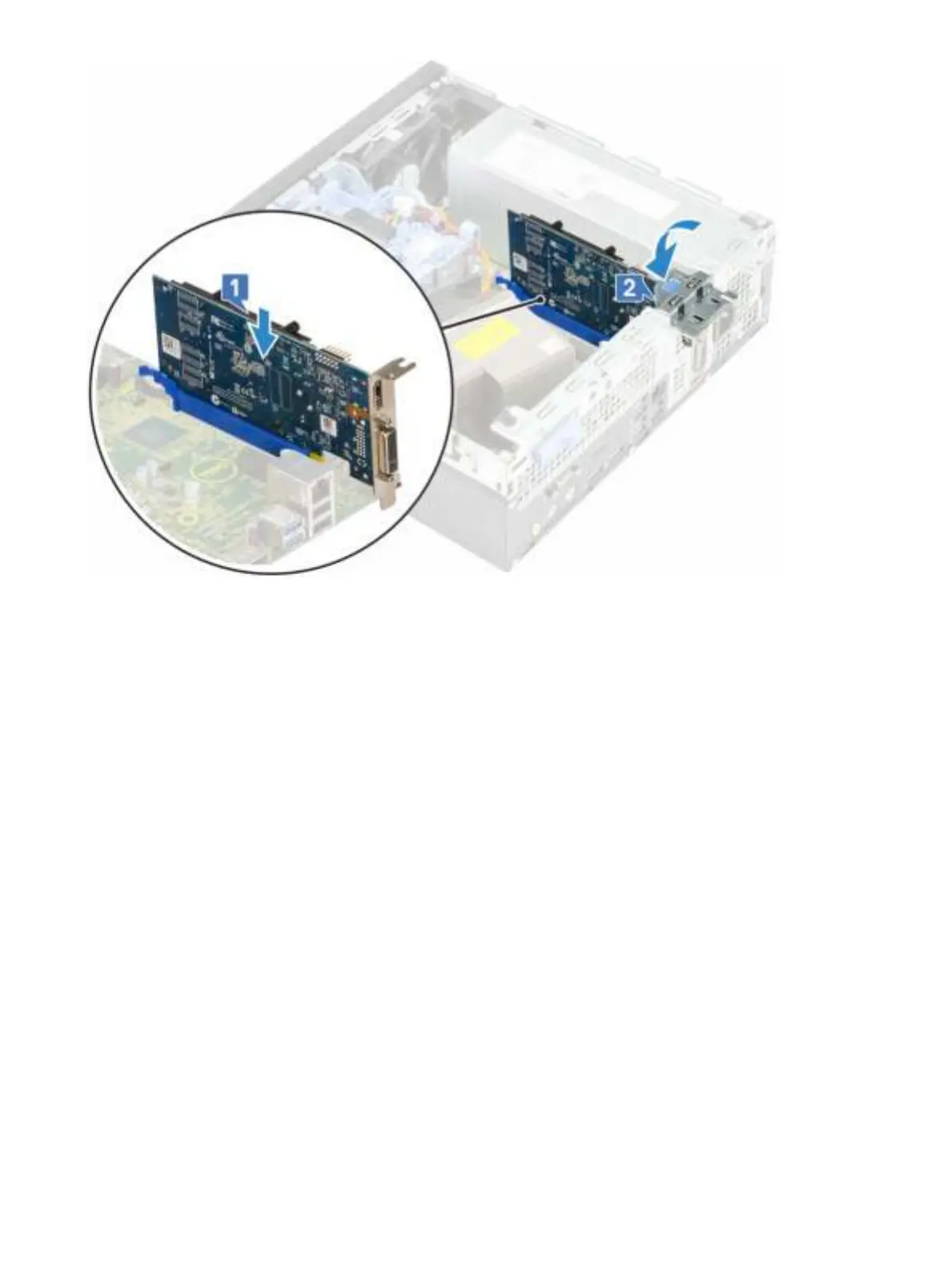

4 Install the Side cover.
5 Follow the procedure in
After working inside your computer.
Coin cell battery
Removing coin cell battery
1 Follow the procedure in Before working inside your computer.
2 Remove the
Side cover.
3 To remove the coin cell battery:
a Using a plastic scribe press the release latch until the coin cell battery pops out [1].
b Remove the coin cell battery from the system [2].
Removing and Installing components 21
