3 Install the:
a
Hard drive and optical drive module
b Front bezel
c Side cover
4 Follow the procedure in After working inside your computer.
System fan
Removing the system fan
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a
Side cover
b Front bezel
c Hard drive and optical drive module
3 To remove the system fan:

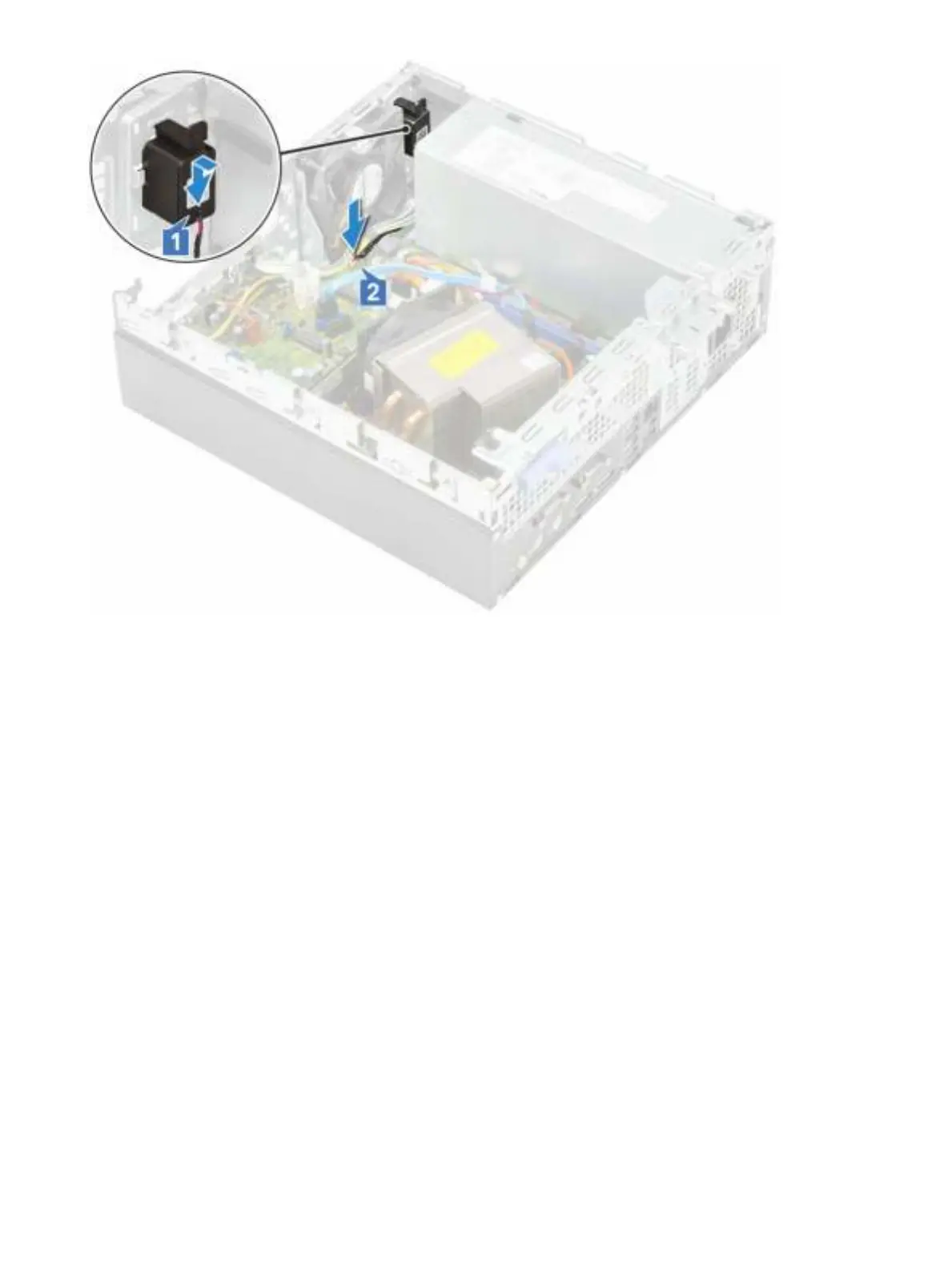

a Disconnect the system fan cable from the system board [1].
b Slide the fan grommets towards the slot on the back of the fan chassis [2].
c Lift the fan away from the system [3, 4].
Removing and Installing components 71
