Dell Precision 3430 Small Form Factor - Hard Drive and Optical Drive Module; Removing the Hard Drive and Optical Drive Module

3 Install the Side cover.
4 Follow the procedure in
After working inside your computer.
Hard drive and optical drive module
Removing the hard drive and optical drive module
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a
Side cover
b Front bezel
3 To release the hard drive and optical drive module:

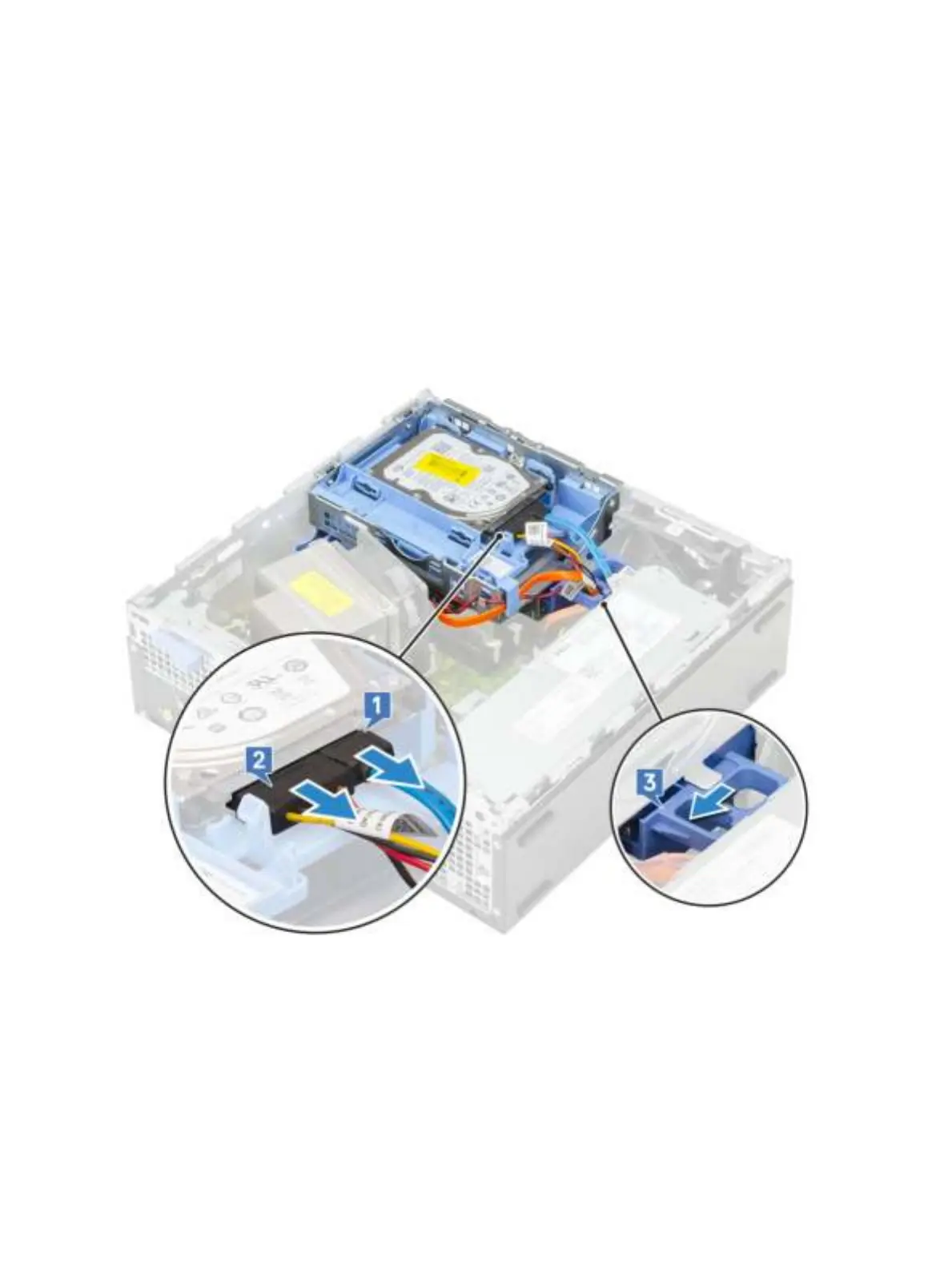

a Disconnect the hard drive data cable and power cable from the connectors on the hard drive [1, 2].
b Slide the release tab to unlock the hard drive and optical module [3].
c Unroute the hard drive cables [1] and optical drive cables [2] through the retention clip and HDD-ODD release tab respectively.
d Lift the hard drive and optical module [3]
28 Removing and Installing components
